Showing 331–340 of 389 results

  • ROG STRIX Z790-I GAMING WIFI

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel®
    Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
    Processors
    Supports Intel® Turbo Boost Technology 2.0
    and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support
    list.
    ** Intel® Turbo Boost Max Technology 3.0
    support depends on the CPU types.

    Chipset

    Intel® Z790 Chipset

    Memory

    2 x DIMM, Max. 64GB, DDR5
    7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
    5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile
    (XMP)
    OptiMem II
    * We recommend active airflow to ensure beter memory performance
    * Supported memory types, data rate(Speed),
    and number of DRAM modules vary depending on the CPU and memory configuration,
    for more information refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

    Graphics

    1 x HDMI® port***
    2 x Intel® Thunderbolt™ 4 ports (USB
    Type-C®) support DisplayPort and Thunderbolt™ video outputs****
    * Graphics specifications may vary between
    CPU types. Please refer to www.intel.com for any updates.
    *** Supports 4K@60Hz as specified in HDMI
    2.1.
    **** VGA resolution support depends on
    processors’ or graphic cards’ resolution.

    Expansion Slots

    Intel® 13th & 12th Gen Processors*
    1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    A resolution support depends on processors’
    or graphic cards’ resolution.

    Storage

    Total supports 2 x M.2 slots and 2 x SATA
    6Gb/s ports
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2280 (supports
    PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
    M.2_2 slot (Key M), type 2242/2260/2280
    (supports PCIe 4.0 x4 mode)
    2 x SATA 6Gb/s ports****
    *** M.2_1 comes from Intel® Z790 Chipset
    when switched to PCIe 4.0 x4 mode
    **** Install ROG FPS-II Card to support 2 x
    SATA 6Gb/s ports.

    2 x SATA 6Gb/s ports****
    *AMD RAIDXpert2 Technology supports both
    NVMe RAID 0/1 and SATA RAID 0/1.
    **** Install ROG FPS-II Card to support 2 x
    SATA 6Gb/s ports

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth v5.3
    * WiFi 6E 6GHz regulatory may vary between
    countries, and function will be ready in Windows 11 or later.

    USB

    Rear USB (Total 9 ports)
    2 x Thunderbolt™ 4 port(s) (2 x USB
    Type-C®)
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB
    Type-C®)
    3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
    1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
    2 x USB 2.0 port(s) (2 x Type-A)
    Front USB (Total 3 ports)
    1 x USB 3.2 Gen 2×2 connector supports 1
    USB Type-C®
    1 x USB 3.2 Gen 1 header(s) support(s) 2
    additional USB 3.2 Gen 1 ports
    ROG STRIX HIVE (Total 2 ports)
    1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
    1 x USB 2.0 port(s) (1 x Type-A)
    ROG FPS-II Card (Total 3 ports)
    2 x USB 2.0 header(s) additional 3 USB 2.0
    ports**

    Audio

    ROG High Definition Audio CODEC ALC4050
    – Supports: Jack-detection
    – High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback
    Audio Features
    – ROG Hyper-Grounding Technology
    – ESS® SABRE9260Q DAC
    – Silver-plated audio jacks
    – Optical S/PDIF out port & USB Type-C®  port with indepent power solution
    *** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.

    Back Panel I/O Ports

    2 x Thunderbolt™ 4 USB Type-C® port(s)
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB
    Type-C®)
    3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
    (supports ROG STRIX HIVE)
    1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
    2 x USB 2.0 port(s) (2 x Type-A)
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin AIO Pump header(s)
    1 x 4-pin Chassis Fan header(s)
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    USB
    1 x USB 3.2 Gen 2×2 connector (support(s)
    USB Type-C® )
    1 x USB 3.2 Gen 1 header(s) support(s) 2
    additional USB 3.2 Gen 1 ports
    Miscellaneous
    1 x Addressable Gen 2 header(s)
    1 x Aura RGB header(s)
    1 x Thermal Sensor header
    2 x USB Type-C® connectors to Install ROG
    FPS-II card
    ROG FPS-II card
    2 x SATA 6Gb/s ports
    1 x CPU Over Voltage jumper
    1 x Thermal Sensor header
    1 x Front Panel header
    1 x Alternative PCIe Mode switch
    2 x USB 2.0 header(s) support(s) additional
    3 USB 2.0 ports

    Special Features

    Extreme Engine Digi+
    – 5K Black Metallic Capacitors
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – Clear CMOS button
    – CPU Socket lever protector
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    Aura Sync
    – Aura RGB header(s)
    – Addressable Gen 2 header(s)
    ROG STRIX HIVE
    1 x USB Type-C® connects to Motherboard
    1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
    1 x USB 2.0 port(s) (1 x Type-A with BIOS
    FlashBack™)
    1 x Headphone jack with Mic in
    1 x Mic in jack with Optical S/PDIF out
    1 x AI OC button
    1 x FlexKey button
    1 x BIOS FlashBack™  button
    1 x Volume Control Knob with Mute Button
    Q-LED (CPU [red], DRAM [yellow], VGA
    [white], Boot Device [yellow green])

    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – Sonic Studio III + Sonic Studio Virtual
    Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound
    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (60 days free trial)
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4 (with AI Cooling II)
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – Easy Optimization with AI Overclocking
    – TPU
    – DIGI+ VRM
    – Turbo app
    – PC Cleaner
    MyAsus
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    FlexKey
    MemTest86

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    2 x SATA 6Gb/s cables
    1 x ROG USB2.0 splitter cable
    1 x Panel Cable
    ROG FPS-II Card
    1 x ROG FPS-II Card
    ROG STRIX HIVE
    1 x ROG STRIX HIVE
    1 x USB Type-C® power connection cable
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties pack
    1 x Rubber Package(s) for M.2
    1 x Q-Latch package(s) for M.2
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    Installation Media
    1 x User guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    Mini-ITX Form Factor
    6.7 inch x 6.7 inch( 17cm x 17cm)

  • Samsung 870 Evo 1TB Internal SSD

    Sasmung’s All new 870 EVO Series Range of Internal SSD, The Samsung 870 EVO 1TB Features Sata 3.0 6gbps Connectivity, Upto 560 MB/s Sequntial Read / Write Speeds and an Endurance Rating of 600 TBW.

    Features

    • Highly reliable and sustainable performance
    • Up to 560 MB/s sequential read and 530 MB/s write
    • Up to 2,400 TBW guaranteed endurance

    The world’s favorite SSD

    The latest model of the world’s best-selling SSD series has finally arrived. The 870 EVO inherits the legacy of Samsung’s pioneering SSD technology, boasting upgraded performance, reliability, and compatibility to suit the needs of anyone from contents creators, IT professionals, to everyday us

    Excellence in performance

    The 870 EVO achieves the maximum SATA interface limit of 560/530 MB/s sequential speeds. Everyday users can now enjoy professional-level SSD performance.Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.

    Industry-defining reliability

    Providing up 600 TBW Endurance Rating, and a 5year limited warranty, the 870 EVO meets the industry’s leading standards of reliability. It withstands tasks from everyday computing to 8K video processing and comes equipped with the latest 6th Gen. VNAND and MKX controller that ensure a stable host experience.

    More compatible than ever

    The 870 EVO passed compatibility tests with major host systems and applications, including chipsets, motherboards, NAS, and video recording devices. As the latest entry in the globally best-selling EVO series, the 870 EVO‘s proven versatility is compatible with systems and tasks of any user.

    Upgrade with ease

    Upgrading to the 870 EVO is made easy for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Enjoying this masterpiece SSD is as convenient as plugging in the 870 EVO into a SATA slot, and letting the renewed migration software take care of the rest.

    Samsung Magician software

    Make your drive work like magic. The new and improved Samsung Magician 6 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive’s health and status, or even enhance its performance.

    World’s No.1 Flash Memory

    Experience the superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

    Specifications

    General Feature
    Application Client PCs
    Capacity 1,000 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
    Form Factor 2.5 inch
    Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
    Dimension (WxHxD) 100 X 69.85 X 6.8 (mm)
    Weight Apporx. 45.0g Weight
    Storage Memory Samsung V-NAND 3bit MLC
    Controller Samsung MKX Controller
    Cache Memory Samsung 512 MB Low Power DDR4 SDRAM
    Special Feature
    TRIM Support TRIM Supported
    S.M.A.R.T Support S.M.A.R.T Supported
    GC (Garbage Collection) Auto Garbage Collection Algorithm
    Encryption Support AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
    WWN Support World Wide Name supported
    Device Sleep Mode Support Yes
    Performance
    Sequential Read Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
    Sequential Write Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Read (4KB, QD32) Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Write (4KB, QD32) Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Read (4KB, QD1) Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Write (4KB, QD1)Q Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Environment
    Average Power Consumption (system level) Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
    Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
    Allowable Voltage 5V ± 5% Allowable voltage
    Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    Operating Temperature 0 – 70 ℃ Operating Temperature
    Shock 1,500 G & 0.5 ms (Half sine)
    Accessories Installation Kit
    Not Available
    Software Management SW
    Magician Software for SSD management, Data Migration Software for SSD upgrade
    Endurance 600 TBW
    Warranty 5 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    • CAPACITY 1TB
    • SERIES 870 EVO
    • FORM FACTOR 2.5 INCH

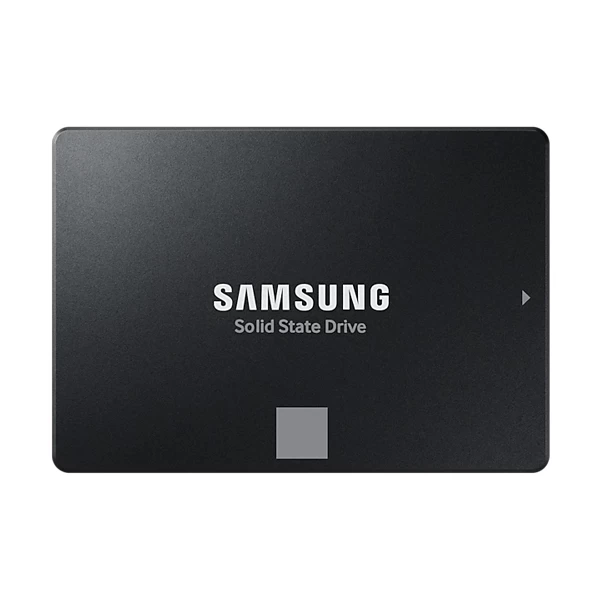

  • Samsung 870 Evo 250GB Internal SSD

    Sasmung’s All new 870 EVO Series Range of Internal SSD, The Samsung 870 EVO 250GB Features Sata 3.0 6gbps Connectivity, Upto 560 MB/s Sequential Read / Write Speeds and an Endurance Rating of 150 TBW.

    Features

    • Highly reliable and sustainable performance
    • Up to 560 MB/s sequential read and 530 MB/s write
    • Up to 150 TBW guaranteed endurance

    The world’s favorite SSD

    The latest model of the world’s best-selling SSD series has finally arrived. The 870 EVO inherits the legacy of Samsung’s pioneering SSD technology, boasting upgraded performance, reliability, and compatibility to suit the needs of anyone from contents creators, IT professionals, to everyday us

    Excellence in performance

    The 870 EVO achieves the maximum SATA interface limit of 560/530 MB/s sequential speeds. Everyday users can now enjoy professional-level SSD performance.Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.

    Industry-defining reliability

    Providing up to 2,400 TBW under a 5year limited warranty, the 870 EVO meets the industry’s leading standards of reliability. It withstands tasks from everyday computing to 8K video processing and comes equipped with the latest 6th Gen. VNAND and MKX controller that ensure a stable host experience.

    DataMore compatible than ever

    The 870 EVO passed compatibility tests with major host systems and applications, including chipsets, motherboards, NAS, and video recording devices. As the latest entry in the globally best-selling EVO series, the 870 EVO‘s proven versatility is compatible with systems and tasks of any user.

    Upgrade with ease

    Upgrading to the 870 EVO is made easy for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Enjoying this masterpiece SSD is as convenient as plugging in the 870 EVO into a SATA slot, and letting the renewed migration software take care of the rest.

    Samsung Magician software

    Make your drive work like magic. The new and improved Samsung Magician 6 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive’s health and status, or even enhance its performance.

    World’s No.1 Flash Memory

    Experience the superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

    Specifications

    Model MZ-77E250BW
    TRIM Support TRIM Supported
    S.M.A.R.T Support S.M.A.R.T Supported
    GC (Garbage Collection) Auto Garbage Collection Algorithm
    Encryption Support AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
    WWN Support World Wide Name supported
    Device Sleep Mode Support Yes
    Performance
    Sequential Read Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
    Sequential Write Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Read (4KB, QD32) Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Write (4KB, QD32) Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Read (4KB, QD1) Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Write (4KB, QD1) Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Environment
    Average Power Consumption (system level) Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
    Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
    Allowable Voltage 5V ± 5% Allowable voltage
    Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    Operating Temperature 0 – 70 ℃ Operating Temperature
    Shock 1,500 G & 0.5 ms (Half sine)
    Software
    Management SW Magician Software for SSD management, Data Migration Software for SSD upgrade
    Warranty 5 Years
    Note ***Features, Price and Specifications are subject to change without notice.
    • CAPACITY 250GB
    • SERIES 870 EVO
    • FORM FACTOR 2.5 INCH

  • Samsung 870 Evo 500GB Internal SSD

    Sasmung’s All new 870 EVO Series Range of Internal SSD, The Samsung 870 EVO 500GB Features Sata 3.0 6gbps Connectivity, Upto 560 MB/s Sequntial Read / Write Speeds and an Endurance Rating of 300 TBW.

    Features

    • Highly reliable and sustainable performance
    • Up to 560 MB/s sequential read and 530 MB/s write
    • Up to 2,400 TBW guaranteed endurance

    The world’s favorite SSD

    The latest model of the world’s best-selling SSD series has finally arrived. The 870 EVO inherits the legacy of Samsung’s pioneering SSD technology, boasting upgraded performance, reliability, and compatibility to suit the needs of anyone from contents creators, IT professionals, to everyday us

    Excellence in performance

    The 870 EVO achieves the maximum SATA interface limit of 560/530 MB/s sequential speeds. Everyday users can now enjoy professional-level SSD performance.Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.

    Industry-defining reliability

    Providing up a 300 TBW under a 5year limited warranty, the 870 EVO meets the industry’s leading standards of reliability. It withstands tasks from everyday computing to 8K video processing and comes equipped with the latest 6th Gen. VNAND and MKX controller that ensure a stable host experience.

    More compatible than ever

    The 870 EVO passed compatibility tests with major host systems and applications, including chipsets, motherboards, NAS, and video recording devices. As the latest entry in the globally best-selling EVO series, the 870 EVO‘s proven versatility is compatible with systems and tasks of any user.

    Upgrade with ease

    Upgrading to the 870 EVO is made easy for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Enjoying this masterpiece SSD is as convenient as plugging in the 870 EVO into a SATA slot, and letting the renewed migration software take care of the rest.

    Samsung Magician software

    Make your drive work like magic. The new and improved Samsung Magician 6 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive’s health and status, or even enhance its performance.

    World’s No.1 Flash Memory

    Experience the superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.

    Specifications

    General Feature
    Application Client PCs
    Capacity 500 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
    Form Factor 2.5 inch
    Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
    Dimension (WxHxD) 100 X 69.85 X 6.8 (mm)
    Weight Apporx. 45.0g Weight
    Storage Memory Samsung V-NAND 3bit MLC
    Controller Samsung MKX Controller
    Cache Memory Samsung 512 MB Low Power DDR4 SDRAM
    Special Feature
    TRIM Support TRIM Supported
    S.M.A.R.T Support S.M.A.R.T Supported
    GC (Garbage Collection) Auto Garbage Collection Algorithm
    Encryption Support AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
    WWN Support World Wide Name supported
    Device Sleep Mode Support Yes
    Performance
    Sequential Read Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
    Sequential Write Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Read (4KB, QD32) Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Write (4KB, QD32) Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Read (4KB, QD1) Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Random Write (4KB, QD1)Q Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
    Environment
    Average Power Consumption (system level) Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
    Power consumption (Idle) Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
    Allowable Voltage 5V ± 5% Allowable voltage
    Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    Operating Temperature 0 – 70 ℃ Operating Temperature
    Shock 1,500 G & 0.5 ms (Half sine)
    Accessories Installation Kit
    Not Available
    Software Management SW
    Magician Software for SSD management, Data Migration Software for SSD upgrade
    Endurance 300 TBW
    Warranty 5 Years
    Note *** Features, Price, Specifications are subject to change without notice.
    • CAPACITY 500GB
    • SERIES 870 EVO
    • FORM FACTOR 2.5 INCH

  • Samsung 870 QVO 4TB SATA SSD

    Technical Details

    Additional Information

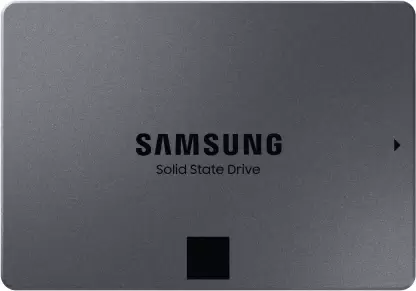

  • Samsung 870 QVO 8TB SATA SSD

    Specifications
    In The Box
    Sales Package
    • 1 SSD, Warranty Card, User Manual
    General
    Brand
    • SAMSUNG
    Model ID
    • MZ-77Q8T0BW
    OS Compatibility
    • Windows, Linux, iOS
    Series
    • 870 QVO
    Drive Configuration
    Device
    • Laptop, Desktop
    Device Type
    • 2.5 Inch SSD
    Drive Capacity
    • 8 TB
    Interface
    • SATA
    Cache Memory
    • 8192 MB
    Form Factor
    • 2.5 Inch
    Warranty
    Not Covered in Warranty
    • Physical Damages
    Service Type
    • Carry-in

  • Samsung 970 EVO Plus 1TB M.2

    MZ-V7S1T0BW

    SPECIFICATIONS



    Model MZ-V7S1T0BW
    Application Client PCs
    Capacity 1TB
    Interface PCIe Gen 3.0 x 4, NVMe 1.3
    Storage Memory Samsung V-NAND 3-bit MLC
    Dimension (WxHxD) 80.15 x 22.15 x 2.38 (mm)
    Cache Memory Samsung 1GB Low Power DDR4 SDRAM
    Controller Samsung Phoenix Controller
    TRIM Support Supported
    S.M.A.R.T Support Supported
    GC (Garbage Collection) Auto Garbage Collection Algorithm
    Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    WWN Support Not supported
    Device Sleep Mode Support Yes
    Read Up to 3,500 MB/s
    Write Up to 3,300 MB/s
    Random Read (4KB, QD32) Up to 600,000 IOPS
    Random Write (4KB, QD32) Up to 550,000 IOPS
    Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    Operating Temperature 0 – 70 ℃ Operating Temperature
    Shock 1,500 G & 0.5 ms (Half sine)
    Form Factor M.2 (2280)
    Warranty 5 Years
    Note ***Features, Price and Specifications are subject to change without notice.



    FEATURES



    Always Evolving SSD

    The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing.

    Level up Performance

    The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s*, up to 57% faster than the 970 EVO**. The latest V-NAND technology — which brings greater NAND performance and higher power efficiency — along with optimized firmware, a Phoenix controller, and Intelligent TurboWrite boost speed.

    Design Flexibility

    The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.

    Exceptional Endurance

    The new standard in sustainable performance. Get up to 1,200 TBW* with a 5-year limited warranty** for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.

    * TBW: Terabytes Written. Warrantied TBW for 970 EVO Plus: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model, 1,200 TBW for 2TB model.
    ** 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.

    Unparalleled Reliability

    Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.

    Samsung Magician



    Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.



    • CAPACITY 1TB
    • SERIES 970 EVO PLUS
    • FORM FACTORM. 2

  • Samsung 970 EVO Plus 250GB M.2 NVMe

    FEATURES



    Always Evolving SSD

    The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacity 250GB, with reliability 150 TBW.

    Level up Performance

    The 970 EVO Plus reaches sequential read/write speeds up to 3,500/2,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.

    Design Flexibility

    The next advancement in NVMe SSDs. The 970 EVO Plus fits 250GB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.

    Exceptional Endurance

    The new standard in sustainable performance. Get up to 150 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s reputation for quality.

    Unparalleled Reliability

    Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.

    Samsung Magician

    Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

    SPECIFICATIONS



    Model Samsung SSD 970 Evo Plus
    Series 970 EVO
    Capacity 250GB
    Application Client PCs
    Interface PCIe Gen 3.0 x 4, NVMe 1.3
    Dimension (WxHxD) 80.15 x 22.15 x 2.38 (mm)
    Sequential Read Up to 3,500 MB/s
    Sequential Write Up to 2,300 MB/s
    NAND Flash Samsung V-NAND 3-bit MLC
    TRIM Support Supported
    S.M.A.R.T Support Supported
    Cache Memory Samsung 512MB Low Power DDR4 SDRAM
    Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    WWN Support Not supported
    GC (Garbage Collection) Auto Garbage Collection Algorithm
    Device Sleep Mode Support Yes
    Voltage 3.3 V ± 5 % Allowable voltage
    Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    Operating Temperature 0 – 70 ℃ Operating Temperature
    NVMe Yes
    Gaming SSDs Yes
    Form Factor M.2 (2280)
    Warranty 5 Years
    Note ***Features, Price and Specifications are subject to change without notice.



    • CAPACITY 250GB
    • SERIES 970 EVO PLUS
    • FORM FACTORM. 2

  • Samsung 970 EVO Plus 2TB M.2 NVMe

    Features



    Always Evolving SSD

    The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by Samsung’s latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for superb computing. In capacities up to 2TB, with reliability of up to 1,200 TBW1.

    Level up Performance

    The 970 EVO Plus can reach sequential read/write speeds up to 3,500/3,300 MB/s2, up to 53%3 faster than the 970 EVO. Samsung’s latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speeds.

    Design Flexibility

    The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung†s innovative technology empowers you with the capacity to do more and accomplish more.

    Exceptional Endurance

    The new standard in sustainable performance. Get up to 1,200 TBW4with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.

    Unparalleled Reliability

    Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable remarkable heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to help minimize performance drops.

    Samsung Magician

    Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

    Specifications



    Model Samsung SSD 970 Evo Plus
    Series 970 EVO
    Capacity 2TB
    Application Client PCs
    Interface PCIe Gen 3.0 x 4, NVMe 1.3
    Dimension (WxHxD) 80.15 x 22.15 x 2.38 (mm)
    Sequential Read Up to 3,500 MB/s
    Sequential Write Up to 3,300 MB/s
    NAND Flash Samsung V-NAND 3-bit MLC
    TRIM Support Supported
    S.M.A.R.T Support Supported
    Cache Memory Samsung 2GB Low Power DDR4 SDRAM
    Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    WWN Support Not supported
    GC (Garbage Collection) Auto Garbage Collection Algorithm
    Device Sleep Mode Support Yes
    Voltage 3.3 V ± 5 % Allowable voltage
    Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    Operating Temperature 0 – 70 ℃ Operating Temperature
    NVMe Yes
    Gaming SSDs Yes
    Form Factor M.2 (2280)
    Warranty 5 Years
    Note ***Features, Price and Specifications are subject to change without notice.
    • CAPACITY 2TB
    • SERIES 970 EVO PLUS
    • FORM FACTORM. 2

  • Samsung 970 EVO Plus 500GB M.2

    SPECIFICATIONS



    Model Samsung SSD 970 Evo Plus
    Series 970 EVO
    Capacity 500GB
    Application Client PCs
    Interface PCIe Gen 3.0 x 4,NVMe 1.3
    Dimension (WxHxD) 80.15 x 22.15 x 2.38 (mm)
    Sequential Read Up to 3,500 MB/s
    Sequential Write Up to 3,300 MB/s
    TRIM Support Supported
    S.M.A.R.T Support Supported
    Cache Memory Samsung 512MB Low Power DDR4 SDRAM
    Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    WWN Support Not supported
    GC (Garbage Collection) Auto Garbage Collection Algorithm
    Device Sleep Mode Support Yes
    Allowable Voltage 3.3 V ± 5 % Allowable voltage
    Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
    Operating Temperature 0 – 70 ℃ Operating Temperature
    Warranty 5 Years
    Note ***Features, Price and Specifications are subject to change without notice.



    FEATURES



    Level Up Performance The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53%‡ faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimised firmware, a proven Phoenix controller and Intelligent TurboWrite boost.

    Always Evolving SSD

    The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimisation. It maximises the potential of NVMe bandwidth for unbeatable computing in capacities up to 2TB, with reliability of up to 1,200 TBW.

    Design Flexibility

    The next advancement in NVMe SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.

    Exceptional Endurance

    The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.

    Unparalleled Reliability

    Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimise performance drops.

    Samsung Magician

    Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health, check speed and even boost performance.



    • CAPACITY 500GB
    • SERIES 970 EVO PLUS
    • FORM FACTORM. 2
