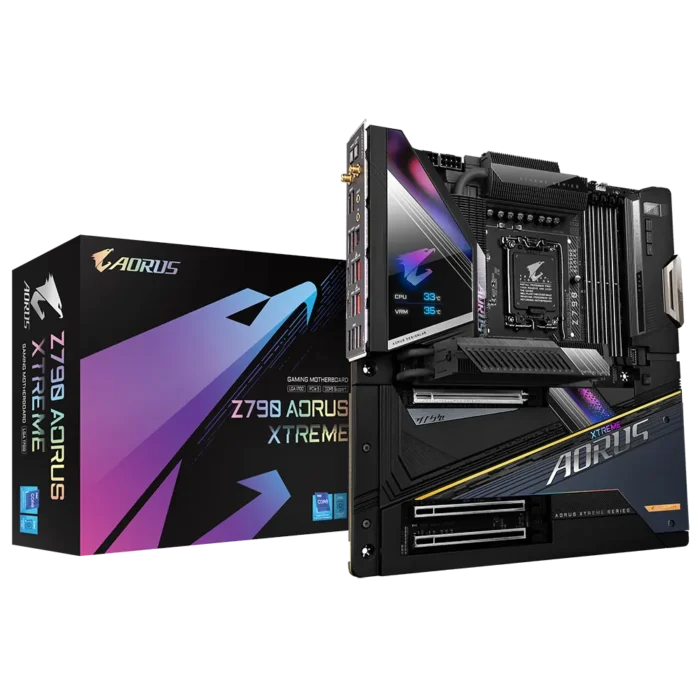

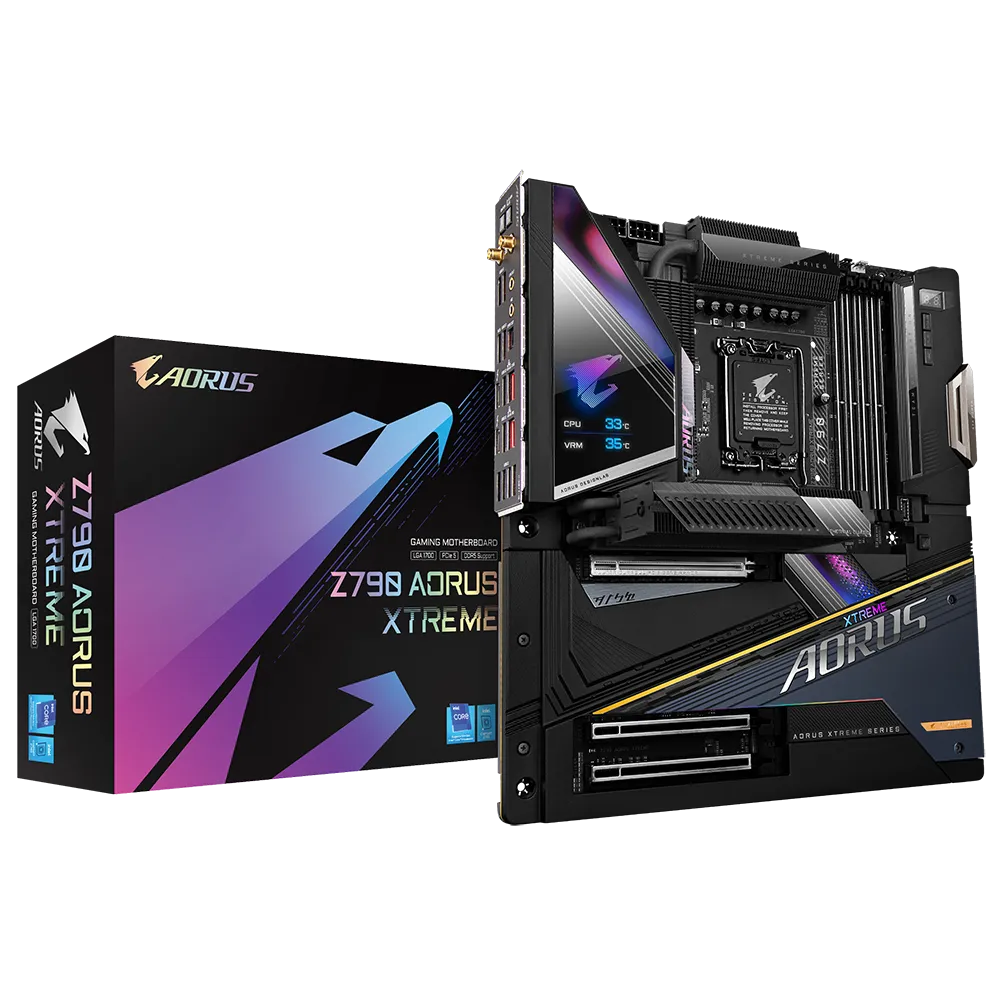

Gigabyte Z790 AORUS XTREME (rev. 1.0)

Product Specifications

• CPU
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
  2. L3 cache varies with CPU

  * Please refer to “CPU Support List” for more information.

• Chipset
  1. Intel^® Z790 Express Chipset
• Memory
  1. Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor+Intel^® Thunderbolt™ 4 Controller:

  1. 2 x Intel^® Thunderbolt™ 4 connectors (USB Type-C^® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output)* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt ™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.)
     * Support for DisplayPort 1.4 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio
  1. ESS ES9280AC DAC chip + 2 ESS ES9080 chips
  2. DTS^® Sound Unbound™
  3. High Definition Audio
  4. 2-channel
  5. Support for S/PDIF Out
     * The line out jack and the optical S/PDIF out connector can only be used one at a time.
• LAN
  1. Marvell^® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
  2. Intel^® 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
• Wireless Communication module

  Intel^® Killer™ Wi-Fi 6E AX1690

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.3
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
     * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

  Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M_SB)
  3. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

  Chipset+Intel^® Thunderbolt™ 4 Controller:

  1. 2 x USB Type-C^® ports on the back panel, with USB 3.2 Gen 2 support

  Chipset:

  1. 1 x USB Type-C^® port with USB 3.2 Gen 2×2 support, available through the internal USB header
  2. 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  Chipset+USB 3.2 Gen 2 Hub:

  1. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

  Chipset+2 USB 2.0 Hubs:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 4 x system fan/water cooling pump headers
  7. 1 x noise detection header
  8. 2 x integrated extension cable headers for addressable and RGB LED strips
  9. 4 x SATA 6Gb/s connectors
  10. 5 x M.2 Socket 3 connectors
  11. 1 x front panel header
  12. 1 x USB Type-C^® header, with USB 3.2 Gen 2×2 support
  13. 2 x USB 3.2 Gen 1 headers
  14. 1 x USB 2.0/1.1 header
  15. 2 x temperature sensor headers
  16. 1 x power button
  17. 1 x reset button
  18. 1 x Clear CMOS button
• Back Panel Connectors
  1. 1 x Q-Flash Plus button
  2. 1 x OC Ignition button
  3. 2 x SMA antenna connectors (2T2R)
  4. 2 x Thunderbolt™ 4 connectors (USB Type-C^® ports, with USB 3.2 Gen 2 support)
  5. 10 x USB 3.2 Gen 2 Type-A ports (red)
  6. 2 x RJ-45 ports
  7. 1 x optical S/PDIF Out connector
  8. 2 x audio jacks
     * The mic in jack supports only mono microphone input
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  7. Noise detection
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for GIGABYTE Control Center (GCC)
     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
  4. Support for Smart Backup
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software
• Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Form Factor
  1. E-ATX Form Factor; 30.5cm x 28.5cm
