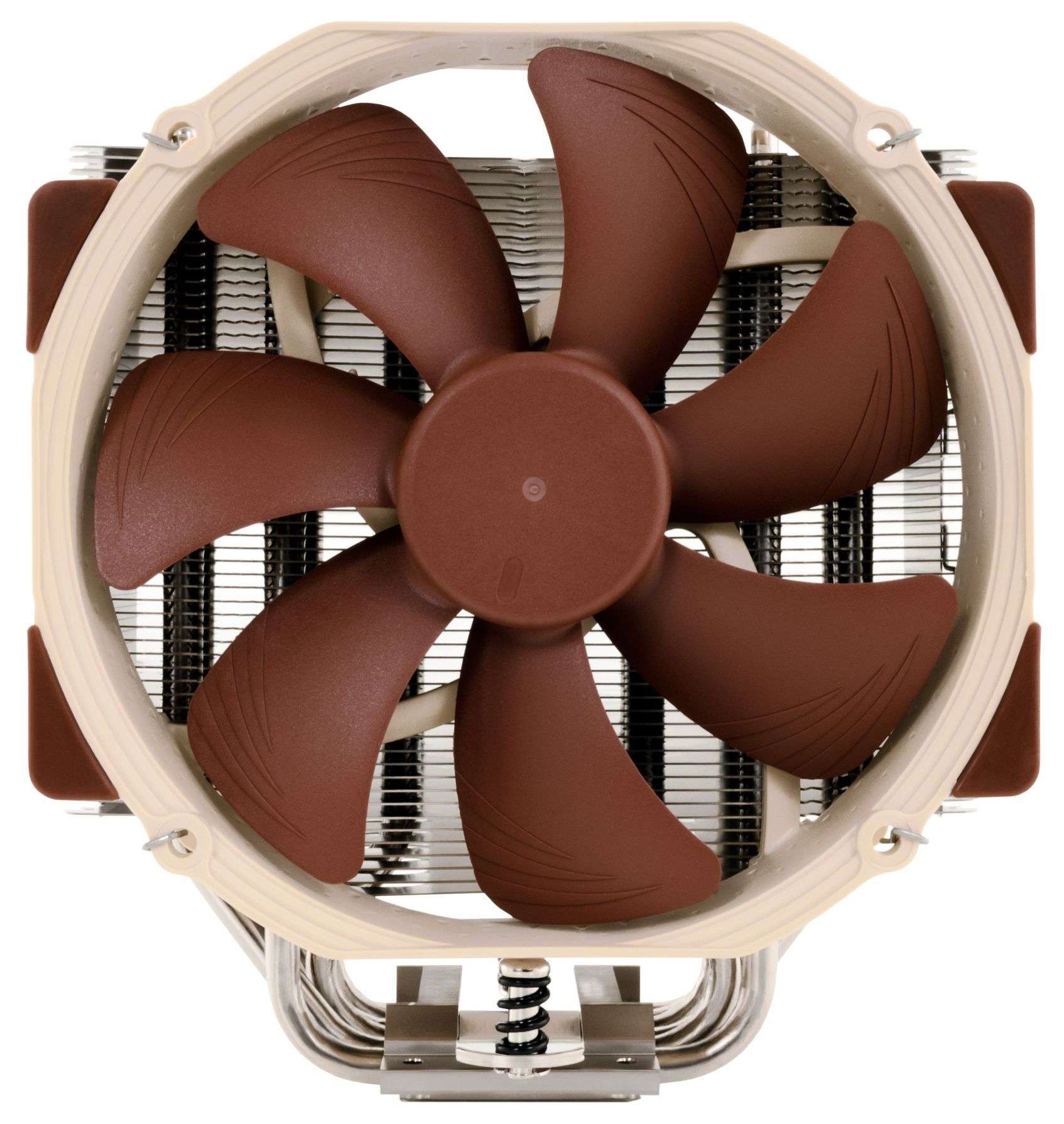

Noctua NH U14S

Cooler Specification
Socket compatibility
Intel LGA1700 (included since Q2 2022, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4-UxS)
Height (without fan)
165 mm
Width (without fan)
150 mm
Depth (without fan)
52 mm
Height (with fan)
165 mm
Width (with fan)
150 mm
Depth (with fan)
78 mm
Weight (with fan)
935 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
162
Max. TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
  • NF-A15 PWM premium fan
  • Low-Noise Adaptor (L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2™ Mounting Kit
  • Anti-vibration pads and fan-clips for second NF-A15 (optional)
  • Noctua Metal Case-Badge
Warranty

6 Years

FAN Specification
Model
Noctua NF-A15 PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
Max. airflow
140,2 m³/h
Max. airflow with L.N.A.
115,5 m³/h
Max. acoustical noise
24,6 dB(A)
Max. acoustical noise with L.N.A.
19,2 dB(A)
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
