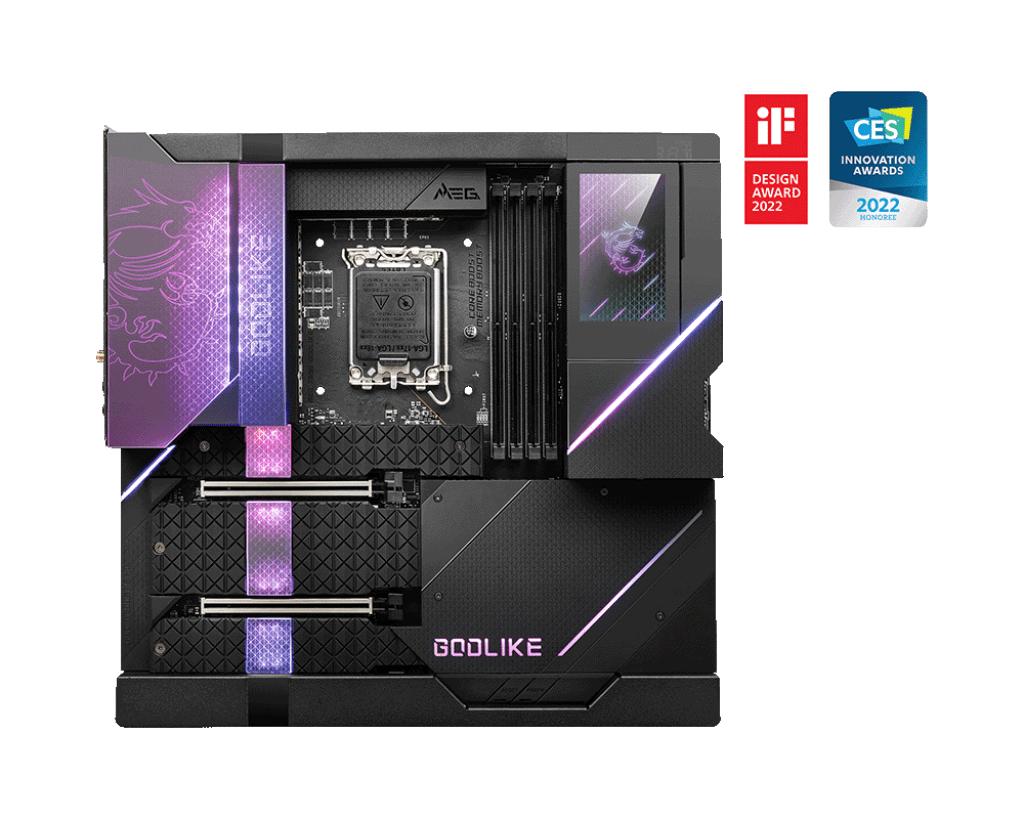

MEG Z690 GODLIKE

PROCESSOR

• Supports 12th/ 13th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors ¹
• Processor socket LGA1700

1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel^® Z690 Chipset

MEMORY

• 4x DDR5 memory slots, supporting up to 128GB ¹
• Supports 1R 5600 MHz (by JEDEC & POR)
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6666+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel^® XMP 3.0 OC
• Supports Dual Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOTS

• 3x PCIe x16 slots
  • Supports x16/x0/x4, x8/x8/x4
  • PCI_E1 supports PCIe 5.0 x16 (From CPU) ¹
  • PCI_E2 supports PCIe 5.0 x8 (From CPU)²
  • PCI_E3 supports PCIe 4.0 x4 (From Z690 chipset)²

1. PCI_E1 will run at x8 speed when install M.2 PCIe SSD in the M2_3 slot
2. M2_3 will be unavailable when installing device in the PCI_E2 slot
3. PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously

MULTI-GPU

• Supports AMD^® CrossFire™ Technology
• Supports NVIDIA^® SLI™ Technology

THUNDERBOLT 4

Intel^®JHL8540 Thunderbolt™ 4 Controller

• 2x Thunderbolt™ 4 (USB-C) ports on the back panel
  • Supports up to 40Gbps transfer rate with Thunderbolt devices
  • Supports up to 20Gbps transfer rate with USB4 devices
  • Supports up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A ,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)

STORAGE

• 6x SATA 6Gb/s ports (From Z690 chipset)
  • SATA5~8 (From Z690 chipset)
  • SATAA~B (From ASM1061)
• 6x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Supports up to PCIe 4.0 x4
    • Supports 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From Z690 chipset)
    • Supports up to PCIe 4.0 x4
    • Supports 2260/ 2280 storage devices
  • M2_3 slot (From CPU) ²
    • Supports up to PCIe 5.0 x4
    • Supports 2260/ 2280/ 22110 storage devices
  • M2_4 slot (From Z690 chipset) ³
    • Supports up to PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2260/ 2280 storage devices
  • M2_5 slot (From Z690 chipset) ¹
    • Supports up to PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2260/ 2280 storage devices
  • M2_6 slot (From Z690 chipset)
    • Supports up to PCIe 3.0 x4
    • Supports 2260/ 2280/ 22110 storage devices
  • M2_2, M2_4, M2_5 and M2_6 slots support Intel^® Optane™ Memory
• Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
2. M2_3 will be unavailable when installing device in the PCI_E2 slot.
3. PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously.

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices ¹
• Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices

1. SATAA & SATAB do not support RAID function.

USB

• Intel^® Z690 Chipset
  • 2x USB 3.2 Gen 2×2 20Gbps Type-C internal connectors
  • 4x USB 3.2 Gen 2 10Gbps ports on the back panel
• Hub-GL3590
  • 4x USB 3.2 Gen 2 10Gbps ports on the back panel
• ASM1074
  • 4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
• Hub-GL850G
  • 4x USB 2.0 ports through internal USB connectors

AUDIO

• Realtek^® ALC4082 Codec + ES9218PQ Combo DAC/HPA
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Aquantia^® AQC113CS 10Gbps LAN controller
• 1x Intel^® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH

• Intel^® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz ¹ (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.2 ², FIPS, FISMA

1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
2. Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 6x M.2 slots (M-Key)
• 2x USB 3.2 Gen 2×2 20Gbps Type-C ports
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 8x 4-pin system fan connectors
• 1x Water Flow meter connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 2x 2-pin Thermal Sensors connectors
• 1xTPM module connector
• 1x Tuning Controller connector

LED FEATURE

• 1x 2-Digit Debug Code LED
• 4x EZ Debug LED
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector

BACK PANEL PORTS

DIMENSIONS

• 12 in. x 12 in. (30.5 cm x 31.0 cm)
• E-ATX Form Factor
