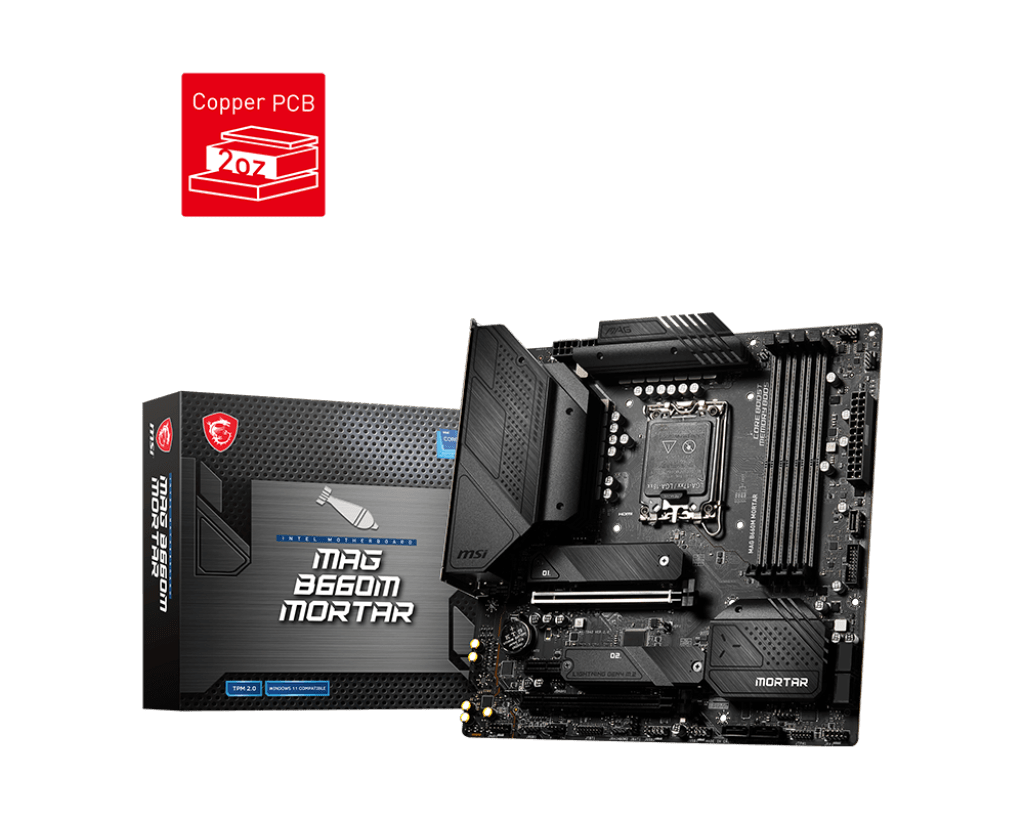

MAG B660M MORTAR

PROCESSOR

  • Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
  • Processor socket LGA1700
  1.  Please go to msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel® B660 Chipset

MEMORY

  • 4x DDR5 memory slots, support up to 128GB1
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 6200+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz
    • 2DPC 1R Max speed up to 5600+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz
  • Supports Intel® XMP 3.0 OC
  • Supports Dual Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  1. Please go to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 2x PCIe x16 slots
    • PCI_E1 slot (From CPU)
      • Supports PCIe 4.0 x16
    • PCI_E3 slot (From B660 Chipset)
      • Supports PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot

MULTI-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

ONBOARD GRAPHICS

  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1 / 2
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1 / 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

STORAGE

  • 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1
  • 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
  • 2x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B660 Chipset)1
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Supports Intel® Optane™ Memory
  1. SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices1
  1. SATA_A & SATA_B do not support RAID function.

USB

Intel® B660 Chipset

  • 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
  • 4x USB 2.0 ports on the back panel

USB Hub-GL3590

  • 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors

AUDIO

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® 8125BG 2.5Gbps LAN controller

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C connector
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector

LED FEATURE

  • 4x EZ Debug LED
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors

BACK PANEL PORTS

  1. USB 2.0 Port
  2. DisplayPort 1.4
  3. USB 3.2 Gen 2 10Gbps Type-A
  4. 2.5G LAN Port
  5. HD Audio Connectors
  6. HDMI 2.1 Port
  7. USB 3.2 Gen 2×2 20Gbps Type-C
  8. Optical S/PDIF OUT
MAG B660M MORTAR DDR4 back panel ports

DIMENSIONS

  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
