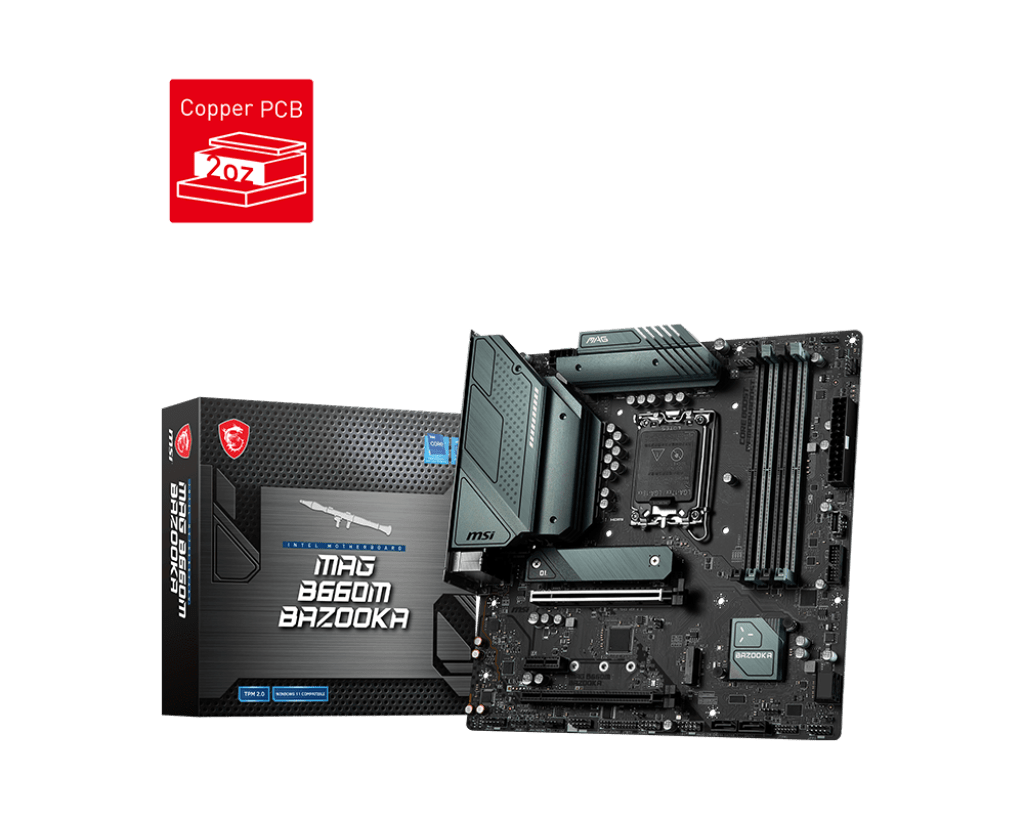

MAG B660M BAZOOKA

PROCESSOR

• Supports 12th/ 13th Gen Intel^® Core™ Processors ¹
• Processor socket LGA1700

1.  Please go to www.msi.com to get the newest support status as new processors are released

See supported processors

CHIPSET

Intel^® B660 Chipset

MEMORY

• 4x DDR5 memory slots, support up to 128GB¹
• Supports 1R 4800 MHz (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 6200+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 5600+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel^® XMP 3.0 OC
• Supports Dual Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 2x PCIe x16 slots
  • PCI_E1 slot (From CPU)
    • Supports PCIe 4.0 x16
  • PCI_E3 slot (From B660 Chipset)
    • Supports PCIe 3.0 x4
• 1x PCIe 3.0 x1 slot (From B660 chipset)

MULTI-GPU

• Supports AMD^® CrossFire™ Technology

ONBOARD GRAPHICS

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz¹ / ²
• 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz¹ / ²

1. Available only on processors featuring integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.

STORAGE

• 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)¹
• 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B660 Chipset)¹
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Supports Intel^® Optane™ Memory
• Supports Intel^® Smart Response Technology for Intel Core™ processors

1. SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

• Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for SATA storage devices

USB

AUDIO

Realtek^® ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® 8125BG 2.5Gbps LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 2x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector (supports RTD3)
• 1x Serial port
• 1x Tuning Controller connector

LED FEATURE

• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

BACK PANEL PORTS

DIMENSIONS

• Micro-ATX Form Factor
• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
