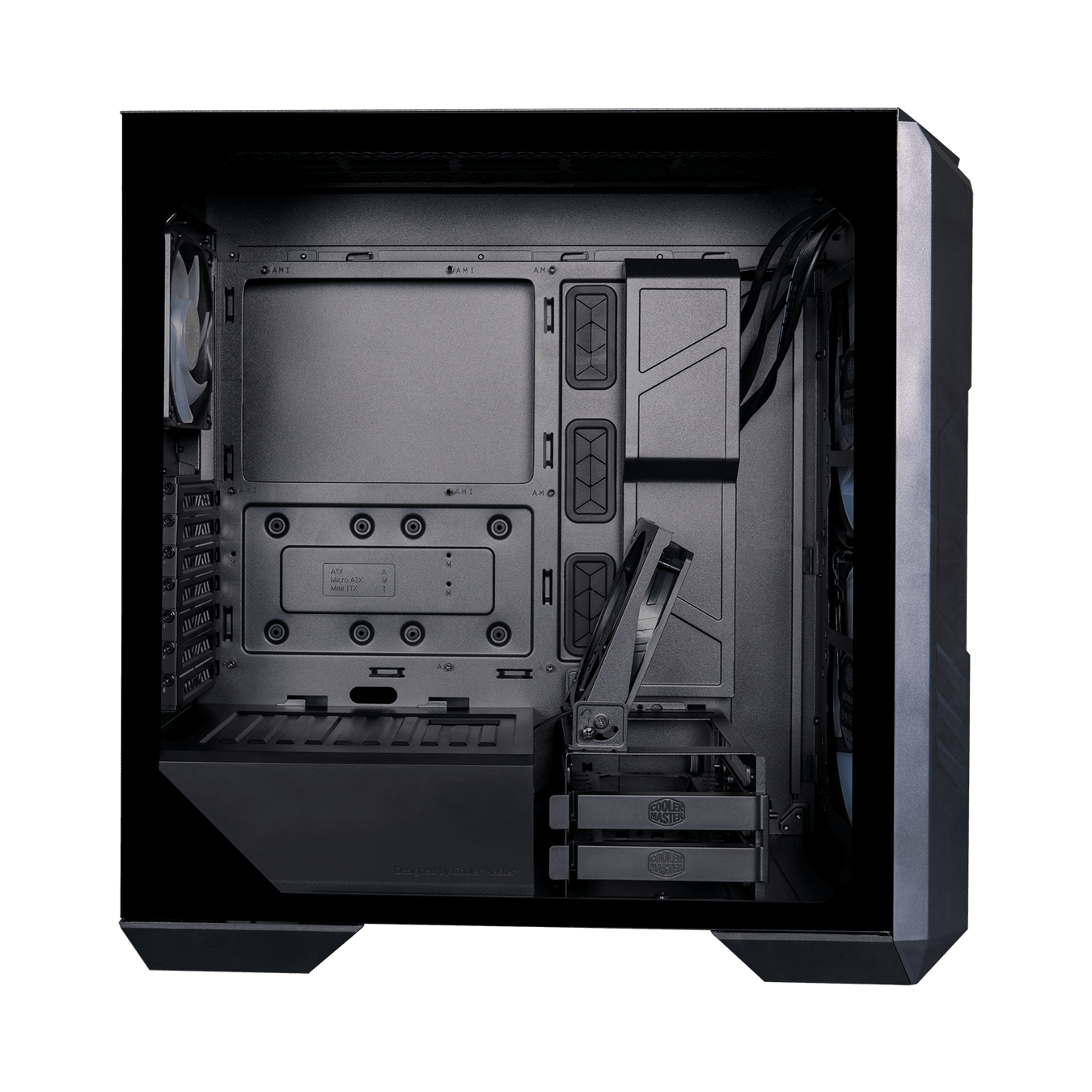

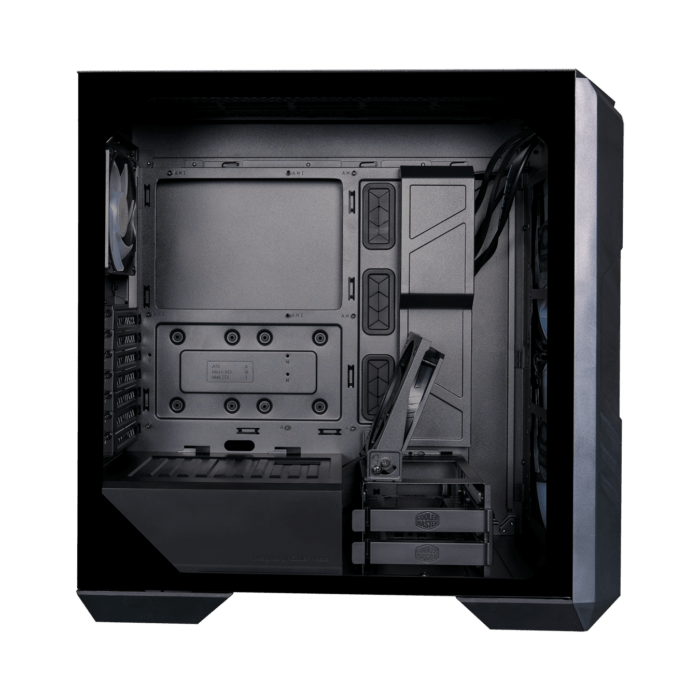

Cool Master HAF 500
Product Specifications
| Exterior Color | Black, White |
| Materials – Outlook | Steel, Mesh, Plastic |
| Materials – Side Panel | Tempered Glass, Steel |
| Dimensions (L x W x H) | 516 x 224 x 510mm (incl. Protrusions) |
| Motherboard Support | ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 14.1″, may impact cable management and case features, remove cable cover and GPU fan bracket features) |
| Expansion Slots | 7 |
| 5.25″ Drive Bays | N/A |
| 2.5″ / 3.5″ Drive Bays (Combo) | 2 |
| 2.5″ Drive Bays | 2 |
| I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x USB 3.2 Gen 2 Type-C, 1x single Audio Jack, 1x Reset/ARGB button |
| ARGB Controller | ARGB Hub |
| Pre-installed Fans – Front | 2x 200mm ARGB Fan |
| Pre-installed Fans – Rear | 1x 120mm SickleFlow PWM ARGB |
| Pre-installed Fans – Top on HDD cage | 1x 120mm SickleFlow PWM (GPU Fan) |
| Fan Support – Top | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support – Front | 3x 120mm, 2x 140mm, 2x 200mm, *200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness |
| Fan Support – Rear | 1x 120mm |
| Fan Support – Top on HDD cage | 1x 120mm |
| Radiator Support – Top | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support – Front | 120mm, 140mm, 200mm, 240mm, 280mm, 360mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 167mm/6.5″ |
| Clearance – PSU | 180mm/7.1″ |
| Clearance – GFX | 410mm/16.1″ |
| Cable Routing – Behind Motherboard Tray | 30mm |
| Dust Filters | Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Warranty | 2 years |
| Series | HAF Series |
| Size | Mid Tower |
