Power Supply Units

Showing 31–40 of 41 results

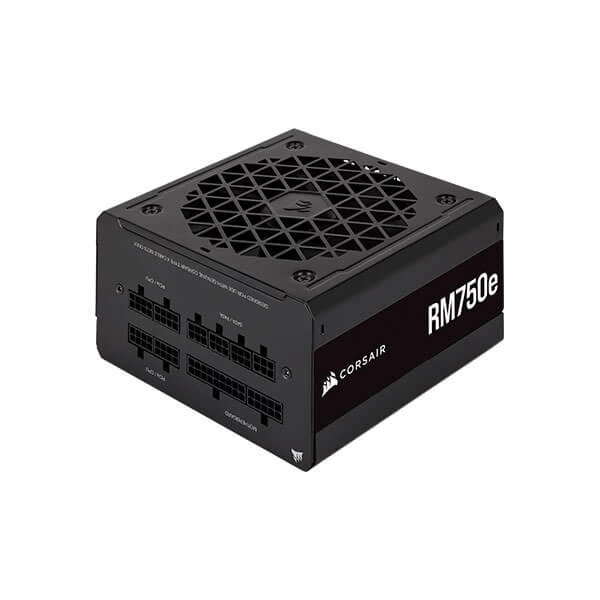

Corsair RM750e 750 Watt 80 Plus Gold SMPS

Features

Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.
Dual 8-pin EPS12V connectors for wide compatibility with modern graphics cards and motherboards.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
105°C-rated capacitors deliver steady, reliable power and dependable electrical performance.
Supports Modern Standby sleep mode for extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS Gold certified for steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
Supports Zero RPM fan mode for near-silent operation at lower loads.
Compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
Resonant LLC topology with DC-to-DC conversion provides clean, consistent power and enables use of more energy-efficient sleep states.
Seven-year warranty for peace of mind through multiple builds.

Fully Modular PSU

Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.

Dual 8-Pin EPS12V Connectors

For wide compatibility with modern graphics cards and motherboards.

Keeps Quiet

A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.

105°C-Rated Capacitors

Delivers steady, reliable power and dependable electrical performance.

Modern Standby Compatible

Extremely fast wake-from-sleep times and better low-load efficiency.

80 PLUS Gold-Certified

Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.

Specification

Part No.	CP-9020248
AC Input	100V a.c.-240V a.c.
Input Current	10A-5A
Frequency	47~63Hz
Total Power	750W
Modular ATX Cable (24-PIN) (24)	1
Modular EPS/ATX12V Cable (8-PIN) (4+4)	2
Modular PCIe Cable (8-PIN) (6+2)/(6+2)	2
Modular PCIe Cable (8-PIN) (6+2)	1
Modular SATA Cable (3 SATA)(straight)	3
Modular SATA Cable (4 SATA)(right angle)	4
Modular PATA Cable (4 PATA)	4
Warranty	7 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 750 Watt
Series RMe SERIES
Certification 80+ GOLD
Modular FULLY MODULAR
PCIe Connector (6+2) 3
SATA Connector 4
Peripheral (4-Pin) 4
Warranty 7 Years

EVGA 450 BR 450 Watt 80 Plus Bronze SMPS

Features:

Hard Lined Design
Bronze Rated Effeciency
Long Sleeve Bearing Fan
DC To Dc Converter
3 Years Warranty

Specification:

Cable Length
ATX Cable	1x 550mm
EPS Cable	1x 600mm
PCIe Cable	1x 550mm, 670mm
SATA Cable	2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable	1x 450mm, 570mm, 690mm + 810mm (Floppy)
Floppy Adapter	1x
AC Power	1x 1200mm (m)
Modular Cable Type	No
Connector Quantity
24 Pin ATX	1x
EPS (CPU)	1x 8pin (4+4)
PCIe	2x 8pin (6+2)
SATA	6x
Four-Pin Peripheral	3x
Floppy	1x
Power Specs
Total Wattage	450W @ +30C
Additional Details
Operating Temperature	0° to 30° C
Japanese Capacitors	No
ECO Mode	No
MTBF	100,000 Hours
Net Weight	4.00 lbs
Size	85mm (H) x 150mm (W) x 140mm (L)
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing	120mm Long Sleeve Bearing
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 450 Watt
Series BR SERIES
Certification 80+ BRONZE
PCIe Connector (6+2) 2
SATA Connector 6
Peripheral (4-Pin) 3
Warranty 3 Years

EVGA 750 BR 750 Watt 80 Plus Bronze SMPS

Features:

80 PLUS Bronze 230V EU certified, delivering up to 88% efficiency
Single 12V. Rail
Active Power Factor Correction
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
3 Year Warranty
DC-DC Converter improves 3.3V/5V stability
Quiet and Intelligent Auto Fan for near-silent operation

Specification:

Cable Length
ATX Cable	1x 550mm
EPS Cable	1x 600mm
PCIe Cable	1x 550mm, 670mm
SATA Cable	2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable	1x 450mm, 570mm, 690mm + 810mm (Floppy)
Floppy Adapter	1x
AC Power	1x 1200mm (m)
Modular Cable Type	No
Connector Quantity
24 Pin ATX	1x 24pin (20+4)
EPS (CPU)	1x 8pin (4+4)
PCIe	4x 8pin (6+2)
SATA	9x
Four-Pin Peripheral	3x
Floppy	1x
Power Specs
Total Wattage	750W
Input
Input Voltage	200-240V~
AC Input	5A
Input Frequency Range	60/50Hz
Efficency	88% typical
Net Weight	4.00 lbs
ADDITIONAL DETAILS
Japanese Capacitors	No
ECO Mode	No
MTBF	100,000 Hours
Net Weight	4.4 lbs
Size	86mm (H) x 150mm (W) x 140mm (L)
Approvals	TUV, CB, CE, RCM, RoHS Compliance with ErP Lot 3 2014 Requirement
UPC	843368074968
EAN	4250812445605
Fan Size / Bearing	120mm Long Sleeve Bearing
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 750 Watt
Series BR SERIES
Certification 80+ BRONZE
PCIe Connector (6+2) 4
SATA Connector 9
Peripheral (4-Pin) 3
Warranty 3 Years

EVGA 850 BQ 850 Watt 80 Plus Bronze SMPS

Features:

5 Year Warranty and unparalleled EVGA Customer Support
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
Quiet and Intelligent Auto Fan for near-silent operation

Introducing the next generation in value; the EVGA BQ Series. These power supplies take some of the best features from EVGA’s award winning power supply lineup, like a 140mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.

Ultra-Quiet

Teflon Nano-Steel Bearing fan allows for near silent operation, even under the toughest loads.

Excellent Performance

85% efficiency or higher under typical loads and high quality Japanese brand capacitors ensure long-term reliability.

Modular Design

Semi-modular design allows you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.

Single +12V Rail

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

Modular

Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow.

NVIDIA SLI Ready

Run multiple NVIDIA graphics cards for the ultimate gaming experience. The EVGA BQ gives you the power you need to drive these demanding systems and achieve the best overclocks..

80 Plus Bronze Rated Efficiency

80 Plus Bronze certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical loads these power supplies are 85% efficient or higher.

Specifications:

Cable Length
ATX Cable	1x 550mm
EPS Cable	2x 600mm
PCIe Cable	3x 550mm, 700mm
SATA Cable	1x 500mm, 650mm, 800mm, 950mm, 2x 500mm, 650mm, 800mm
Four-Pin Peripheral Cable	1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy)
Floppy Adapter	1x
AC Power	1x 1800mm
Modular Cable Type	Semi-Modular
Connector Quantity
24 Pin ATX	1x
EPS (CPU)	2x 8pin(4+4)
PCIe	3x 8pin (6+2), 3x 6pin
SATA	10x
Four-Pin Peripheral	5x
Floppy	1x
Input
Input Voltage	100-240V~
AC Input	12A
Input Frequency Range	60/50Hz
Output
Total	850W
Max Output	160W Max Output:- 24A / 20A Rail:- +3.3V / +5V 840W Max Output:- 70A Rail:- +12V 15W Max Output:- 3A Rail:- +5sbV 3.6W Max Output:- 0.3A Rail:- -12V
Additional Details
Operating Temperature	0° to 40° C
Japanese Capacitors	Main PCB
ECO Mode	No
MTBF	100,000 Hours
Gross Weight	7.03 lbs
Size	85mm (H) x 150mm (W) x 165mm (L)
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Fan Size / Bearing	140mm Teflon Nano-Steel Bearing
Warranty	5 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 850 Watt
Certification 80+ BRONZE
Modular SEMI MODULAR
PCIe Connector (6+2) 3
SATA Connector 9
Peripheral (4-Pin) 5

EVGA SuperNova 1000 GT 1000 Watt 80 Plus Gold SMPS

Features:

80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
100% Japanese Capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

Introducing the EVGA SuperNOVA GT Series of power supplies – the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a fluid dynamic bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA’s line of 80 Plus Gold rated power supplies, the EVGA GT Series combines all these features at a great price.

Refinement In performance and design

Upgrade both aesthetics and electronic components with a unique radial design fan grill, compact 150mm length and width, and 100% Japanese capacitors.

80 PLUS GOLD Efficiency

82 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.

Fluid dynamic Bearing

The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.

Single +12V output

Provides a stable output for compatibility with the latest hardware.

Fully modular design

Choose the cables you need to make cable management simple and clean.

Auto eco mode

Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.

Full Protection

OVP Over Voltage Protection
OCP Over Current Protection
OPP Over Power Protection
SCP Short Circuit Protection
UVP Under Voltage Protection
Dual OTP Over Temperature Protection on the Primary and Secondary PCB

Specifications:

Cable Length
ATX Cable	1x 600mm (m)
EPS Cable	2x 700mm (m)
PCIe Cable	2x 700mm (m), 3x 700mm, 850mm (m)
SATA Cable	4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable	1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter	1x Molex to FDD Adapter
AC Power	1x 1500mm (m)
Modular Cable Type	Full
Connector Quantity
24 Pin ATX	1x
EPS (CPU)	2x 8pin(4+4)
PCIe	8x 8pin(6+2)
SATA	12x
Four-Pin Peripheral	4x
Floppy	1x
Input
Input Voltage	100-240V~
AC Input	12-6A
Input Frequency Range	60/50Hz
Efficiency	90% or Higher Typical
Output
Total	1000W
Max Output	130W Max Output:- 25A Rail:- +3.3V / +5V 1000W Max Output:- 83.3A Rail:- +12V 15W Max Output:- 3A Rail:- +5Vsb 3.6W Max Output:- 0.5A Rail:- -12V
Additional Details
Operating Temperature	0° to 50° C
Japanese Capacitors	100%
ECO Mode	Yes
MTBF	100,000 Hours
Gross Weight	8.80 lbs
Size	86mm (H) x 150mm (W) x 150mm (L)
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing	135mm Fluid Dynamic Bearing
Warranty	10 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 1000 Watt
Certification 80+ GOLD
Modular FULLY MODULAR
PCIe Connector (6+2) 8
SATA Connector 12
Peripheral (4-Pin) 4

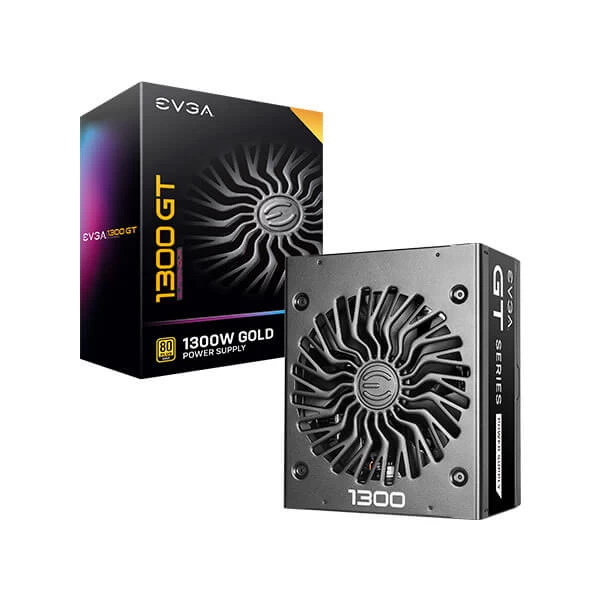

EVGA SuperNova 1300 GT 1300 Watt 80 Plus Gold SMPS

Features:

Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
Fully Modular to reduce clutter and improve airflow
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
100% Japanese Capacitors ensure long-term reliability
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)

Specifications:

CABLE LENGTH
ATX Cable	1x 600mm (m)
EPS Cable	2x 750mm (m)
PCIe Cable	4x 750mm (m), 2x 750mm, 900mm (m)
SATA Cable	4x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable	2x 550mm, 650mm, 750mm, 850mm(m)
Floppy Adapter	1x Molex to FDD Adapter
AC Power	1x 1500mm (m)
Modular Cable Type	Full
Molex to FDD	1x
CONNECTOR QUANTITY
24 Pin ATX	1x
EPS (CPU)	2x 8pin(4+4)
PCIe	8x 8pin(6+2)
SATA	12x
Four-Pin Peripheral	8x
Floppy	1x
POWER SPECS
Total wattage	1300W
ADDITIONAL DETAILS
Operating Temperature	+50° C
Japanese Capacitors	100%
ECO Mode	Yes
MTBF	100,000 Hours
Net Weight	9.20 lbs
Size	86mm (H) x 150mm (W) x 180mm (L)
Approvals	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing	135mm Fluid Dynamic Bearing
Warranty	10 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 1300 Watt
Certification 80+ GOLD
Modular FULLY MODULAR
PCIe Connector (6+2) 8
SATA Connector 12
Peripheral (4-Pin) 8

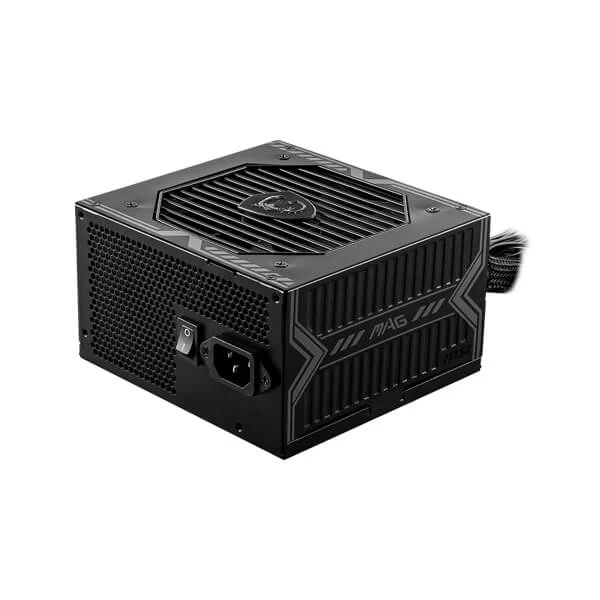

MSI MAG A550BN 550 Watt 80 Plus Bronze SMPS

Features:

80 Plus Bronze certified for high efficiency
120mm Low Noise Fan
Industrial level protection with OVP,OCP,OPP,OTP, SCP
DC-DC Circuit Design
Active PFC design

MAG A550BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A550BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.

80 PLUS BRONZE CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

120mm LOW NOISE FAN

The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.

DC TO DC CIRCUIT DESIGN

Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.

COMPREHENSIVE CIRCUIT PROTECTION

Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.

5-YEAR LIMITED WARRANTY

The MAG A550BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.

Specifications:

Product Name	MAG A550BN
Power Wattage	550W
Input Voltage	100-240Vac
Input Current	115Vac/8.0A max. 230Vac/4.0A max.
Input Frequency	50Hz ~ 60Hz
Efficiency	Up to 85% (80 Plus Bronze)
PSU Form Factor	ATX
Fan Size	120 mm
Dimensions	150mm x140mm x86mm
PFC Type	Active PFC
Protection	OCP / OVP / OPP / OTP / SCP
Warranty	5 Years
Note	***Features, Price and Specifications are subject to change without notice.

Wattage 550 Watt
Series MAG SERIES
Certification 80+ Bronze
Modular No
PCIe Connector (6+2) 2
SATA Connector 5
Peripheral (4-Pin) 2
Warranty 5 Years

MSI MPG A1000G 1000 Watt 80 Plus Gold SMPS

Features:

Supports the NVIDIA GeForce RTX™ 30 Series GPUs
Full modular cable design
Flat cable equipment
80 Plus Gold certified for high efficiency
100% all Japanese 105oCcapacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

0% RPM MODE

The fan 0 RPM mode can stop the fan’s operation when TDP is below 40% to let you enjoy gaming in silence.

Use What You Need

The MPG A1000G’s fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

SINGLE-RAILED

The MPG A1000G’s single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, the MPG A1000G’s 5 CPU & PCI-E slots are more than plenty.

COMPACT SIZING

Smaller than typical PSUs on the market, the new ATX series PSU’s compact sizing makes it an excellent fit for more PC cases.

Specification:

Product Name	MPG A1000G
Form Factor	ATX
Rated Wattage	1000W
Efficiency Rating	80 PLUS Gold (up to 90%)
Modular	Yes (fully modular)
Fan Size	135 mm
Fan Bearing	Fluid Dynamic Bearing
Dimensions (DxWxH)	150 x 150 x 86 mm
PFC Type	Active PFC
Input Voltage Range	100~240 VAC
Input Frequency Range	50~60 Hz
Protection	OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin)	1
EPS (8 pin)	2
PCI-E (6+2 pin)	7
SATA (15 pin)	12
MOLEX (4 pin)	4
FDD (4 pin)	1
Warranty	10 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 1000 Watt
Series MPG SERIES
Certification 80+ GOLD
Modular FULLY MODULAR
PCIe Connector (6+2) 7
SATA Connector 12
Peripheral (4-Pin) 4
Warranty 10 Years

MSI MPG A650GF 80 Plus Gold SMPS

MSI MPG Series 650 Watt 80 Plus Gold Fully Modular Power Supply With Active PFC, Comes Well Equipped with Japanese Capacitors, 4x PCIe 6+2 Pin Connectors, 8x SATA Ports, 5x Peripheral Connectors and Carries a 10 Year Warranty.

Features

GPU SUPPORT

The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30 Series GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

TRUSTWORTHY AND EFFICIENT

The MPG gaming power supply is proudly backed by a 10-year limited warranty, guaranteeing long term reliable operation.

100% JAPANESE 105° C CAPACITORS

Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

ONLY WHAT YOU NEED

Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply’s fully modular design, it means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

ALL THE MORE ORGANIZED

All of the MPG gaming power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.

FEELS RIGHT AT HOME

The MPG gaming power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

ALLOY COPPER CONNECTOR TERMINALS

The MPG gaming power supply’s CPU, VGA, and MB connectors utilize alloy copper terminals that can withstand higher current ratings than traditional phosphor bronze cable terminals.

Key Features

Supports the NVIDIA GeForce RTX™ 30 Series GPUs
Full modular cable design
Flat cable equipment
10-year warranty
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design

Specifications

Product Name	MPG A650GF
PSU Form Factor	ATX
Power Watt	650W
Input Voltage	100-240Vac
Input Current	115Vac/10.0A max. 230Vac/5.0A max.
Input Frequency	47Hz ~ 63Hz
Efficiency	Up to 90% (80 Plus Gold)
Fan Size	140 mm
Dimension	150mm x160mm x86mm
PFC Type	Active PFC
Protection	OCP / OVP / OPP / OTP / SCP / UVP
Warranty	10 Years
Note	***Features, Price and Specifications are subject to change without notice.

Wattage 650 Watt
Series MPG SERIES
Certification 80+ GOLD
Modular FULLY MODULAR
PCIe Connector (6+2) 4
SATA Connector 8
Peripheral (4-Pin) 5
Warranty 10 Years

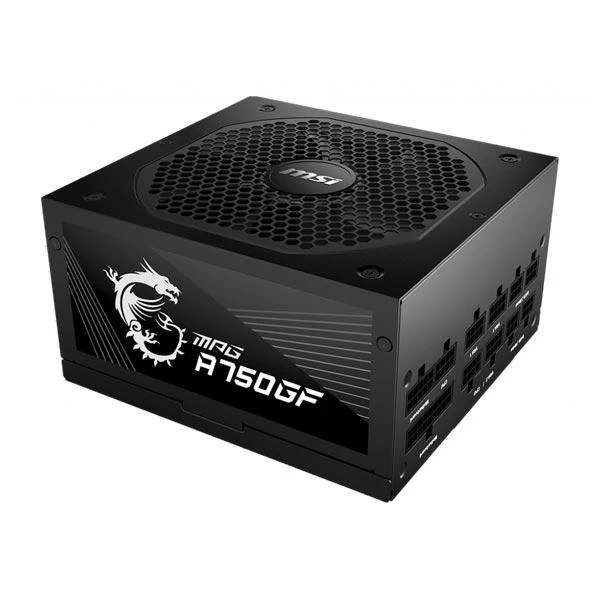

MSI MPG A750GF 750 Watt 80 Plus Gold SMPS

Features

MAG A750 GF

Supports the NVIDIA GeForce RTX™ 30 Series GPUs
Full modular cable design
Flat cable equipment
10-year warranty
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design

GPU SUPPORT FOR ALL

The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

TRUSTWORTHY AND EFFICIENT

The MPG gaming power supply is proudly backed by a 10-year limited warranty, guaranteeing long term reliable operation.

100% JAPANESE 105° C CAPACITORS

Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

ONLY WHAT YOU NEED

ALL THE MORE ORGANIZED

All of the MPG gaming power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.

FEELS RIGHT AT HOME

ALLOY COPPER CONNECTOR TERMINALS

The MPG gaming power supply’s CPU, VGA, and MB connectors utilize alloy copper terminals that can withstand higher current ratings than traditional phosphor bronze cable terminals.

Specifications

PRODUCT NAME	MPG A750GF
PSU FORM FACTOR	ATX
POWER WATT	750W
INPUT VOLTAGE	100~240 Vac
INPUT CURRENT	115Vac/10.0A max. 230Vac/5.0A max.
INPUT FREQUENCY	47Hz ~ 63Hz
CONNECTORS
ATX12V (Motherboard) 20+4 pin	1
EPS12V (CPU) 4+4 pin	2
PCIe (VGA) 6+2 pin	6
SATA 15 pin	8
Peripheral 4 pin	4
FDD 4 pin	1
GENERAL SPECIFICATIONS
EFFICIENCY	Up to 90% (80 Plus Gold)
FAN SIZE	140 mm
DIMENSION	150mm x160mm x86mm
PFC TYPE	Active PFC
PROTECTION	OCP / OVP / OPP / OTP / SCP / UVP
Warranty	10 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Wattage 750 Watt
Series MPG SERIES
Certification 80+ GOLD
Modular FULLY MODULAR
PCIe Connector (6+2) 6
SATA Connector 8
Peripheral (4-Pin) 5
Warranty 10 Years

Corsair RM750e 750 Watt 80 Plus Gold SMPS

EVGA 450 BR 450 Watt 80 Plus Bronze SMPS

EVGA 750 BR 750 Watt 80 Plus Bronze SMPS

EVGA 850 BQ 850 Watt 80 Plus Bronze SMPS

EVGA SuperNova 1000 GT 1000 Watt 80 Plus Gold SMPS

EVGA SuperNova 1300 GT 1300 Watt 80 Plus Gold SMPS

MSI MAG A550BN 550 Watt 80 Plus Bronze SMPS

MSI MPG A1000G 1000 Watt 80 Plus Gold SMPS

MSI MPG A650GF 80 Plus Gold SMPS

MSI MPG Series 650 Watt 80 Plus Gold Fully Modular Power Supply With Active PFC, Comes Well Equipped with Japanese Capacitors, 4x PCIe 6+2 Pin Connectors, 8x SATA Ports, 5x Peripheral Connectors and Carries a 10 Year Warranty.

MSI MPG A750GF 750 Watt 80 Plus Gold SMPS

About Us

QUICK LINKS

MSI MPG Series 650 Watt 80 Plus Gold Fully Modular Power Supply With Active PFC, Comes Well Equipped with Japanese Capacitors, 4x PCIe 6+2 Pin Connectors, 8x SATA Ports, 5x Peripheral Connectors and Carries a 10 Year Warranty.

About Us

QUICK LINKS

Get in touch

Review Cart
