  • ROG STRIX Z790-H GAMING WIFI

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® Z790 Chipset

    Memory

    4 x DIMM, Max. 128GB, DDR5
    7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
    Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
    ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

    Graphics

    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    **** VGA resolution support depends on processors’ or graphic cards’ resolution.

    Expansion Slots

    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot

    Intel® Z790 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
    1 x PCIe 3.0 x1 slot

    * Please check the PCIe bifurcation table
    on the support site (https://www.asus.com/support/FAQ/1037507/).
    ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Storage

    Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)

    Intel® Z790 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth® v5.3
    * WiFi 6E 6GHz regulatory may vary between countries.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

    USB

    Rear USB (Total 10 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)

    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/192 kHz playback*
    Audio Features
    – SupremeFX Shielding Technology
    – Savitech SV3H712 AMP
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Audio cover
    *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    5 x Gold-plated audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™  button
    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    5 x 4-pin Chassis Fan headers

    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V Power connectors

    Storage related
    4 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports

    USB
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x CPU Over Voltage jumper
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thermal Sensor header
    1 x Thunderbolt™  header

    Special Features

    Extreme Engine Digi+
    – 5K Black Metallic Capacitors

    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot

    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsink
    – VRM heatsink design

    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – Clear CMOS button
    – CPU Socket lever protector
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM

    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers

    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound

    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (60 days free trial)
    – Aura Creator- Aura Sync
    – Fan Xpert 4 (with AI Cooling II)
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – Easy Optimization with AI Overclocking
    – TPU
    – DIGI+ VRM
    – Turbo app
    – PC Cleaner
    – System Information
    MyAsus
    Norton 360 for Gamers
    WinRAR

    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    FlexKey
    MemTest86

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    2 x SATA 6Gb/s cables

    Additional Cooling Kit
    1 x Thermal pad for M.2

    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties package
    1 x M.2 backplate Q-Latch package
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    2 x M.2 Rubber Packages
    1 x M.2 backplate Rubber

    PackageDocumentation
    1 x User guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • ROG STRIX Z790-I GAMING WIFI

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel®
    Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
    Processors
    Supports Intel® Turbo Boost Technology 2.0
    and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support
    list.
    ** Intel® Turbo Boost Max Technology 3.0
    support depends on the CPU types.

    Chipset

    Intel® Z790 Chipset

    Memory

    2 x DIMM, Max. 64GB, DDR5
    7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
    5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile
    (XMP)
    OptiMem II
    * We recommend active airflow to ensure beter memory performance
    * Supported memory types, data rate(Speed),
    and number of DRAM modules vary depending on the CPU and memory configuration,
    for more information refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

    Graphics

    1 x HDMI® port***
    2 x Intel® Thunderbolt™ 4 ports (USB
    Type-C®) support DisplayPort and Thunderbolt™ video outputs****
    * Graphics specifications may vary between
    CPU types. Please refer to www.intel.com for any updates.
    *** Supports 4K@60Hz as specified in HDMI
    2.1.
    **** VGA resolution support depends on
    processors’ or graphic cards’ resolution.

    Expansion Slots

    Intel® 13th & 12th Gen Processors*
    1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    A resolution support depends on processors’
    or graphic cards’ resolution.

    Storage

    Total supports 2 x M.2 slots and 2 x SATA
    6Gb/s ports
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2280 (supports
    PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
    M.2_2 slot (Key M), type 2242/2260/2280
    (supports PCIe 4.0 x4 mode)
    2 x SATA 6Gb/s ports****
    *** M.2_1 comes from Intel® Z790 Chipset
    when switched to PCIe 4.0 x4 mode
    **** Install ROG FPS-II Card to support 2 x
    SATA 6Gb/s ports.

    2 x SATA 6Gb/s ports****
    *AMD RAIDXpert2 Technology supports both
    NVMe RAID 0/1 and SATA RAID 0/1.
    **** Install ROG FPS-II Card to support 2 x
    SATA 6Gb/s ports

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth v5.3
    * WiFi 6E 6GHz regulatory may vary between
    countries, and function will be ready in Windows 11 or later.

    USB

    Rear USB (Total 9 ports)
    2 x Thunderbolt™ 4 port(s) (2 x USB
    Type-C®)
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB
    Type-C®)
    3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
    1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
    2 x USB 2.0 port(s) (2 x Type-A)
    Front USB (Total 3 ports)
    1 x USB 3.2 Gen 2×2 connector supports 1
    USB Type-C®
    1 x USB 3.2 Gen 1 header(s) support(s) 2
    additional USB 3.2 Gen 1 ports
    ROG STRIX HIVE (Total 2 ports)
    1 x USB 3.2 Gen 2 port ( 1 x USB Type-C®)
    1 x USB 2.0 port(s) (1 x Type-A)
    ROG FPS-II Card (Total 3 ports)
    2 x USB 2.0 header(s) additional 3 USB 2.0
    ports**

    Audio

    ROG High Definition Audio CODEC ALC4050
    – Supports: Jack-detection
    – High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback
    Audio Features
    – ROG Hyper-Grounding Technology
    – ESS® SABRE9260Q DAC
    – Silver-plated audio jacks
    – Optical S/PDIF out port & USB Type-C®  port with indepent power solution
    *** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.

    Back Panel I/O Ports

    2 x Thunderbolt™ 4 USB Type-C® port(s)
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB
    Type-C®)
    3 x USB 3.2 Gen 2 port(s) (3 x Type-A)
    (supports ROG STRIX HIVE)
    1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
    2 x USB 2.0 port(s) (2 x Type-A)
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin AIO Pump header(s)
    1 x 4-pin Chassis Fan header(s)
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    USB
    1 x USB 3.2 Gen 2×2 connector (support(s)
    USB Type-C® )
    1 x USB 3.2 Gen 1 header(s) support(s) 2
    additional USB 3.2 Gen 1 ports
    Miscellaneous
    1 x Addressable Gen 2 header(s)
    1 x Aura RGB header(s)
    1 x Thermal Sensor header
    2 x USB Type-C® connectors to Install ROG
    FPS-II card
    ROG FPS-II card
    2 x SATA 6Gb/s ports
    1 x CPU Over Voltage jumper
    1 x Thermal Sensor header
    1 x Front Panel header
    1 x Alternative PCIe Mode switch
    2 x USB 2.0 header(s) support(s) additional
    3 USB 2.0 ports

    Special Features

    Extreme Engine Digi+
    – 5K Black Metallic Capacitors
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – Clear CMOS button
    – CPU Socket lever protector
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    Aura Sync
    – Aura RGB header(s)
    – Addressable Gen 2 header(s)
    ROG STRIX HIVE
    1 x USB Type-C® connects to Motherboard
    1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
    1 x USB 2.0 port(s) (1 x Type-A with BIOS
    FlashBack™)
    1 x Headphone jack with Mic in
    1 x Mic in jack with Optical S/PDIF out
    1 x AI OC button
    1 x FlexKey button
    1 x BIOS FlashBack™  button
    1 x Volume Control Knob with Mute Button
    Q-LED (CPU [red], DRAM [yellow], VGA
    [white], Boot Device [yellow green])

    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – Sonic Studio III + Sonic Studio Virtual
    Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound
    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (60 days free trial)
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4 (with AI Cooling II)
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – Easy Optimization with AI Overclocking
    – TPU
    – DIGI+ VRM
    – Turbo app
    – PC Cleaner
    MyAsus
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    FlexKey
    MemTest86

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    2 x SATA 6Gb/s cables
    1 x ROG USB2.0 splitter cable
    1 x Panel Cable
    ROG FPS-II Card
    1 x ROG FPS-II Card
    ROG STRIX HIVE
    1 x ROG STRIX HIVE
    1 x USB Type-C® power connection cable
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties pack
    1 x Rubber Package(s) for M.2
    1 x Q-Latch package(s) for M.2
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    Installation Media
    1 x User guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    Mini-ITX Form Factor
    6.7 inch x 6.7 inch( 17cm x 17cm)

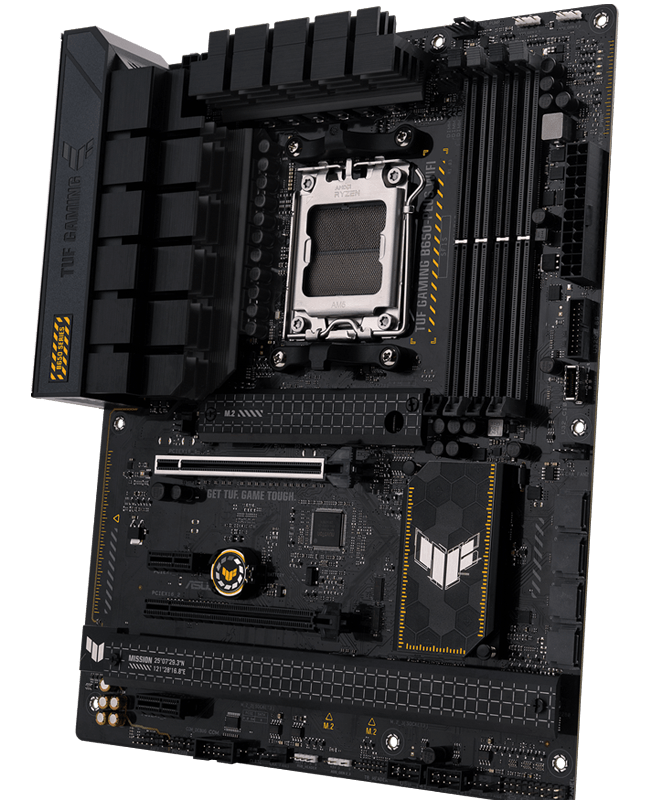

  • TUF GAMING B650-PLUS WIFI

    CPU
    AMD Socket AM5 for AMD Ryzen™ 7000 Series
    Desktop Processors*
    * Refer to www.asus.com for CPU support list.
    Chipset
    AMD B650
    Memory
    4 x DIMM, Max. 128GB, DDR5
    6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD EXTended Profiles for Overclocking (EXPO™)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
    Graphics
    1 x DisplayPort*
    1 x HDMI® port**
    * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
    *** VGA resolution support depends on processors’ or graphic cards’ resolution.
    Expansion Slots
    AMD Ryzen™ 7000 Series Desktop Processors*
    1 x PCIe 4.0/3.0 x16 slot(s)
    AMD B650 Chipset
    1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
    2 x PCIe 4.0/3.0 x1 slots
    * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/).
    Storage
    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    AMD Ryzen™ 7000 Series Desktop Processors
    M.2_1 slot (Key M), type
    2242/2260/2280(supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**
    4 x SATA 6Gb/s ports
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
    ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless & Bluetooth
    Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.2
    USB
    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
    3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
    4 x USB 2.0 port(s) (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Power pre-regulator reduces power input noise to ensure consistent performance
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Audio cover
    – Unique de-pop circuit
    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
    ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
    3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
    4 x USB 2.0 port(s) (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™ button
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin CPU OPT Fan header(s)
    1 x 4-pin AIO Pump header(s)
    4 x 4-pin Chassis Fan header(s)
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (support(s) USB Type-C® )
    1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 header(s)
    1 x Aura RGB header(s)
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
    Special Features
    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    Aura Sync
    – Aura RGB header(s)
    – Addressable Gen 2 header(s)
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – TurboV EVO
    – DIGI+ VRM
    – PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyAsus
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
    Operating System
    Windows® 11
    Windows® 10 64-bit
    Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

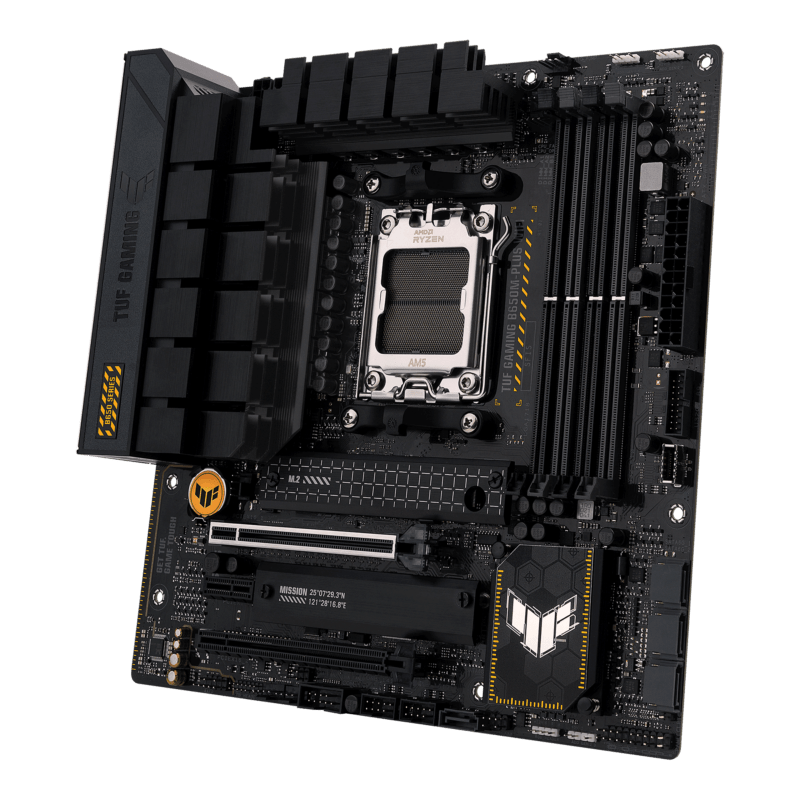

  • TUF GAMING B650M-PLUS

    CPU
    AMD Socket AM5 for AMD Ryzen™ 7000 Series
    Desktop Processors*
    * Refer to www.asus.com for CPU support list.
    Chipset
    AMD B650
    Memory
    4 x DIMM, Max. 128GB, DDR5
    6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD EXTended Profiles for Overclocking (EXPO™)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
    Graphics
    1 x DisplayPort*
    1 x HDMI® port**
    * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
    *** VGA resolution support depends on processors’ or graphic cards’ resolution.
    Expansion Slots
    AMD Ryzen™ 7000 Series Desktop Processors*
    1 x PCIe 4.0/3.0 x16 slot
    AMD B650 Chipset
    1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0/3.0 x1 slot
    * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
    Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    4 x SATA 6Gb/s ports
    *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    USB
    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI®port
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™ button
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB Gen 1 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
    Special Features
    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    -TurboV EVO
    -DIGI+ VRM
    -PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    Norton Anti-virus software (Free Trialversion)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
    Operating System
    Windows®11, Windows®10 64-bit
    Form Factor
    micro-ATX Form Factor
    9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

  • TUF GAMING B650M-PLUS WIFI

    CPU
    AMD Socket AM5 for AMD Ryzen™ 7000 Series
    Desktop Processors*
    * Refer to www.asus.com for CPU support list.
    Chipset
    AMD B650
    Memory
    4 x DIMM, Max. 128GB, DDR5
    6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD EXTended Profiles for Overclocking (EXPO™)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
    Graphics
    1 x DisplayPort*
    1 x HDMI® port**
    * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
    *** VGA resolution support depends on processors’ or graphic cards’ resolution.
    Expansion Slots
    AMD Ryzen™ 7000 Series Desktop Processors*
    1 x PCIe 4.0/3.0 x16 slot
    AMD B650 Chipset
    1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0/3.0 x1 slot
    * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
    Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    4 x SATA 6Gb/s ports
    *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless & Bluetooth
    Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.2
    USB
    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Premium audio capacitors
    – Dedicated audio PCB layers
    Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI®port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™ button
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB Gen 1 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
    Special Features
    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 2+
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    -TurboV EVO
    -DIGI+ VRM
    -PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyAsus
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
    Operating System
    Windows®11, Windows®10 64-bit
    Form Factor
    micro-ATX Form Factor
    9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

  • TUF GAMING B660M-PLUS WIFI

    CPU
    Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset
    Intel® B660 Chipset

    Memory
    4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

    Graphics
    1 x DisplayPort**
    1 x HDMI® port***
    *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    ***Supports 4K@60Hz as specified in HDMI 2.1.
    **** VGA resolution support depends on processors’ resolution.
    Expansion Slots
    Intel® 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    Intel® B660 Chipset*
    1 x PCIe 3.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x1 slot
    * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.

    Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280
    – Intel® 12th Gen processors support PCIe 4.0 x4 mode.
    Intel® B660 Chipset**
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

    Ethernet
    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless & Bluetooth
    Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.2*
    *Bluetooth v5.2 function will be ready in Windows 11 or later.
    USB
    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback

    Audio Features
    – Audio Shielding
    – Power pre-regulator reduces power input noise to ensure consistent performance
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Dedicated audio PCB layers



    Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port

    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ header

    Special Features
    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – VRM heatsink design
    – M.2 heatsinks
    ASUS EZ DIY
    – CPU Socket lever protector
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    AURA Sync
    – AURA RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Fan Xpert 2+
    – Two-Way AI Noise Cancelation
    AI Suite 3
    – Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyASUS
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE
    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x M.2 Rubber Package
    1 x M.2 SSD screw package
    1 x TUF Gaming sticker
    Installation Media
    1 x Support DVD
    Documentation
    1 x TUF Certification card
    1 x User guide
    Operating System
    Windows® 11 64-bit, Windows® 10 64-bit
    Form Factor
    mATX Form Factor
    9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

  • TUF GAMING B760-PLUS WIFI D4

    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    Intel® B760 Chipset
    Memory
    4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
    Graphics
    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion Slots
    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    Intel® B760 Chipset
    1 x PCIe 3.0 x16 slot (supports x4 mode)*
    2 x PCIe 3.0 x1 slots*
    * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage
    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless & Bluetooth
    Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.2*
    *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
    USB
    Rear USB (Total 6 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (3 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Audio cover
    Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (3 x Type-A)
    1 x USB 2.0 port (1 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
    Special Features
    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – CPU Socket lever protector
    – ProCool
    – Pre-mounted I/O shield
    – SafeSlot Core+
    – SafeDIMM
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – DIGI+ VRM
    – PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyASUS
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE
    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antenna
    1 x TUF Gaming sticker
    2 x M.2 Rubber Packages
    1 x Screw package for M.2 SSD
    Documentation
    1 x TUF Certification card
    1 x User guide
    Operating System
    Windows® 11, Windows® 10 64-bit
    Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • TUF GAMING B760M-PLUS WIFI D4

    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    Intel® B760 Chipset
    Memory
    4 x DIMM, Max. 128GB, DDR4  5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
    Graphics
    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    ***Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion Slots
    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    Intel® B760 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x1 slot
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    TUF LANGuard
    Wireless & Bluetooth
    Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.2*
    *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
    USB
    Rear USB (Total 8 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports*
    * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback ”
    Audio Features
    – Audio Shielding
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Dedicated audio PCB layers
    Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 2 ports (4 x Type-A)
    1 x USB 3.2 Gen 1 port (1 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    I/O Connectors  Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
    Special Features
    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – SafeSlot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – CPU Socket lever protector
    – ProCool
    – Pre-mounted I/O shield
    – SafeDIMM
    AURA Sync
    – AURA RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Fan Xpert 2+
    – Power Saving
    – Two-Way AI Noise Cancelation
    AI Suite 3
    DIGI+ VRM
    – PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyASUS
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    128 Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE
    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x M.2 Rubber Package
    1 x Screw package for M.2 SSD
    1 x TUF Gaming sticker
    Documentation
    1 x TUF Certification card
    1 x User guide
    Operating System
    Windows® 11, Windows® 10 64-bit
    Form Factor
    mATX Form Factor
    9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

  • TUF GAMING H670-PRO WIFI D4

    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset
    H670

    Memory
    4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II

    *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

    Graphics

    1 x DisplayPort**

    1 x HDMI® port***

    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    **Supports max. 4K@60Hz as specified in DisplayPort 1.4.

    ***Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    Intel® 12th Gen Processors*

    1 x PCIe 5.0 x16 slot

    Intel® H670 Chipset**

    1 x PCIe 3.0 x16 slot (supports x4 mode)

    2 x PCIe 3.0 x1 slots

    * Please check PCIe bifurcation table in support site.

    ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

    Storage

    Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

    Intel® 12th Gen Processors

    M.2_1 slot (Key M), type 2242/2260/2280/22110

    – Intel® 12th Gen processors support PCIe 4.0 x4 mode

    Intel® H670 Chipset**

    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    4 x SATA 6Gb/s ports

    * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

    Ethernet

    1 x Intel® 2.5Gb Ethernet

    TUF LANGuard

    Wireless & Bluetooth

    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

    Supports 2.4/5GHz frequency band

    Bluetooth v5.2

    USB

    Rear USB:Total 7 ports

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

    2 x USB 3.2 Gen 2 ports (2 x Type-A)

    4 x USB 3.2 Gen 1 ports (4 x Type-A)

    Front USB:Total 7 ports

    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC*

    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    – Supports up to 24-Bit/192 kHz playback

    Audio Features

    – Audio Shielding

    – Rear optical S/PDIF out port

    – Premium audio capacitors

    – Dedicated audio PCB layers

    – Audio Cover

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

    2 x USB 3.2 Gen 2 ports (2 x Type-A)

    4 x USB 3.2 Gen 1 ports (4 x Type-A )

    1 x DisplayPort

    1 x HDMI® port

    1 x Wi-Fi Module

    1 x Intel® 2.5Gb Ethernet port

    5 x Audio jacks

    1 x Optical S/PDIF out port

    Internal I/O Connectors

    Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    4 x 4-pin Chassis Fan headers

    Power related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    1 x 4-pin +12V Power connector

    Storage related

    4 x M.2 slots (Key M)

    4 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x AURA RGB header

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (AAFP)

    1 x 20-3 pin System Panel header with Chassis intrude function

    1 x Thunderbolt™ header

    Special Features

    ASUS TUF PROTECTION

    – DIGI+ VRM (- Digital power design with DrMOS)

    – Enhanced DRAM Overcurrent Protection

    – ESD Guards

    – TUF LANGuard

    – Overvoltage Protection

    – Safeslot

    – Stainless-Steel Back I/O

    ASUS Q-Design

    – M.2 Q-Latch

    – Q-DIMM

    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    – Q-Slot

    ASUS Thermal Solution

    – M.2 heatsink

    – VRM heatsink design

    ASUS EZ DIY

    – CPU Socket lever protector

    – ProCool

    – Pre-mounted I/O shield

    – SafeSlot

    – SafeDIMM

    AURA Sync

    – AURA RGB header

    – Addressable Gen 2 headers

    Software Features

    ASUS Exclusive Software

    Armoury Crate

    – AURA Creator

    – AURA Sync

    – Fan Xpert 4

    – Two-Way AI Noise Cancelation

    AI Suite 3

    – Performance And Power Saving Utility

    TurboV EVO

    EPU

    DIGI+ VRM

    TUF GAMING CPU-Z

    DTS Audio Processing

    MyAsus

    Norton Anti-virus software (Free Trial version)

    WinRAR

    UEFI BIOS

    ASUS EZ DIY

    – ASUS CrashFree BIOS 3

    – ASUS EZ Flash 3

    – ASUS UEFI BIOS EZ Mode

    BIOS

    192 (128+64) Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables

    2 x SATA 6Gb/s cables

    Miscellaneous

    1 x ASUS Wi-Fi moving antennas

    2 x M.2 Rubber Packages

    1 x M.2 SSD screw package

    1 x TUF GAMING sticker

    Installation Media

    1 x Support DVD

    Documentation

    1 x TUF Certification card

    1 x User guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    ATX
    30.5cm x 24.4cm

  • TUF GAMING H770-PRO WIFI

    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    Intel® H770 Chipset
    Memory
    4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
    Graphics
    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    Expansion Slots
    Intel® 13th & 12th Gen Processors*
    1 x PCIe 5.0 x16 slot
    Intel® H770 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    2 x PCIe 3.0 x1 slots
    * Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage
    Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
    Intel® H770 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
    Ethernet
    1 x Intel® 2.5Gb Ethernet
    TUF LANGuard
    Wireless & Bluetooth
    Wi-Fi 6
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth® v5.2*
    *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
    USB
    Rear USB (Total 7 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Audio Shielding
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Audio Cover
    Back Panel I/O Ports
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    2 x USB 3.2 Gen 2 ports (2 x Type-A)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    4 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt™ (USB4®) header
    Special Features
    ASUS TUF PROTECTION
    – DIGI+ VRM (- Digital power design with DrMOS)
    – ESD Guards
    – TUF LANGuard
    – Overvoltage Protection
    – Safeslot Core+
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – CPU Socket lever protector
    – ProCool
    – Pre-mounted I/O shield
    – SafeSlot Core+
    – SafeDIMM
    AURA Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4
    – Two-Way AI Noise Cancelation
    – Power Saving
    AI Suite 3
    – DIGI+ VRM
    – PC Cleaner
    TUF GAMING CPU-Z
    DTS Audio Processing
    MyAsus
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    192 (128+64) Mb Flash ROM, UEFI AMI BIOS
    Manageability
    WOL by PME, PXE
    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antenna
    1 x TUF GAMING sticker
    2 x M.2 Rubber Packages
    2 x Screw package for M.2 SSD
    Documentation
    1 x TUF Certification card
    1 x User guide
    Operating System
    Windows® 11, Windows® 10 64-bit
    Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
