  • PRO Z790-P

    CHIPSET INTEL Z790
    CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
    MEMORY 4x DDR5, Maximum Memory Capacity 128GB
    Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7000+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Intel® XMP3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    ONBOARD GRAPHICS 1x HDMI™
    1x DisplayPort
    Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    EXPANSION SLOT 3x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
    STORAGE 4x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    6x SATA 6G
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
    LAN Intel® 2.5Gbps LAN
    AUDIO Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    INTERNAL I/O 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    6x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
    LED FEATURE 4x EZ Debug LED
    BACK PANEL PORTS

    1. Keyboard / Mouse
    2. DisplayPort
    3. USB 2.0
    4. 2.5G LAN
    5. Audio Connectors
    6. Flash BIOS Button
    7. USB 2.0
    8. HDMI™
    9. USB 3.2 Gen 1 5Gbps (Type-A)
    10. USB 3.2 Gen 2×2 20Gbps (Type-C)
    11. USB 3.2 Gen 2 10Gbps (Type-A)
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB DIMENSION ATX
    243.84mmx304.8mm

  • ProArt B660-CREATOR D4

    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™
    Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® 10 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    Intel® B660 Chipset
    Intel® B660
    Memory
    4 x DIMM, Max. 128GB, DDR4
    5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    Graphics
    1 x HDMI® port**
    1 x USB Type-C port supports DisplayPort output***
    1 x DP IN that will have output through USB Type-C port
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Support 4K@60Hz as specified in HDMI 2.1.
    *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution.
    **** A DisplayPort to DisplayPort cable is required for the USB Type-C® port at the back panel to output DisplayPort signal.
    Expansion Slots
    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0/4.0/3.0 x16 slot
    Intel® B660 Chipset*
    1 x PCIe 3.0 x16 slot (supports x4 mode)
    1 x PCIe 3.0 x1 slot**
    * Supports Intel® Optane Memory H Series on PCH-attached PCIE slot
    ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
    Storage
    Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
    Intel® B660 Chipset**
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports***
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
    *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    1 x Intel® 1Gb Ethernet
    ASUS LANGuard
    Wireless & Bluetooth
    M.2 slot only (Key E, PCIe)*
    *Wi-Fi module is sold separately.
    USB
    Rear USB (Total 9 ports)
    1 x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with 60W PD/QC4+)
    1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Power pre-regulator reduces power input noise to ensure consistent performance
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Audio cover
    – Unique de-pop circuit
    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
    Back Panel I/O Ports
    1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort (Input only)
    1 x HDMI® port
    1 x Realtek 2.5Gb Ethernet port
    1 x Intel® 1Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with 60W PD/QC4+)
    1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x M.2 slot (Key E)
    1 x SPI TPM header (14-1pin)
    1 x 20-5 pin System Panel header
    1 x Thermal Sensor header
    1 x Thunderbolt™ header
    Special Features
    ASUS 5X PROTECTION III
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – LANGuard
    – Overvoltage Protection
    – SafeSlot
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – Flexible M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – ProCool
    – Pre-mounted I/O shield
    AURA Sync
    – AURA RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Fan Xpert 4
    – Two-Way AI Noise Cancelation
    AI Suite 3
    – Performance And Power Saving Utility
    EPU
    DIGI+ VRM
    Turbo app
    ASUS CPU-Z
    IT Management software supported
    – ASUS Control Center Express(ACCE)
    ProArt Creator Hub
    CreationFirst
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    128 Mb
    Manageability
    WOL by PME, PXE
    Accessories
    Cables
    1 x DisplayPort cable
    2 x SATA 6Gb/s cables
    Miscellaneous
    3 x M.2 rubber packages
    1 x M.2 SSD Screw Package
    1 x Q-connector
    Installation Media
    1 x Support DVD
    Documentation
    1 x ACC Express Activation Key Card
    1 x User guide
    Operating System
    Windows® 11 64-bit, Windows® 10 64-bit
    Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • ProArt B760-CREATOR D4

    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® 10 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    Intel® B760 Chipset
    Memory
    4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary devpending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/.
    Graphics
    1 x HDMI® port**
    1 x DisplayPort port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Support 4K@60Hz as specified in HDMI 2.1.
    *** Support max. 8K@60Hz as specified in DisplayPort 1.4.
    Expansion Slots
    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0/4.0/3.0 x16 slot
    Intel® B760 Chipset*
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 3.0 x1 slot**
    ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
    Storage
    Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110
    – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
    Intel® B760 Chipset**
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)***
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports***
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
    Ethernet
    1 x Realtek 2.5Gb Ethernet
    1 x Intel® 1Gb Ethernet
    ASUS LANGuard
    Wireless & Bluetooth
    M.2 slot only (Key E, PCIe)*
    *Wi-Fi module is sold separately.
    USB
    Rear USB (Total 9 ports)
    1 x USB 3.2 Gen 2 Type-C® port
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
    Audio Features
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Audio cover
    – Unique de-pop circuit
    Back Panel I/O Ports
    1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Realtek  2.5Gb Ethernet port
    1 x Intel® 1Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x AURA RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x M.2 slot (Key E)
    1 x SPI TPM header (14-1pin)
    1 x 20-5 pin System Panel header
    1 x Thermal Sensor header
    1 x Thunderbolt™  header
    Special Features
    ASUS 5X PROTECTION III
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – LANGuard
    – Overvoltage Protection
    – SafeSlot
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – Flexible M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – ProCool
    – Pre-mounted I/O shield
    AURA Sync
    – AURA RGB header
    – Addressable Gen 2 headers
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Fan Xpert 4
    – Power Saving
    – Two-Way AI Noise Cancelation
    AI Suite 3
    – Performance And Power Saving Utility
    DIGI+ VRM
    Turbo app
    ASUS CPU-Z
    IT Management software supported
    – ASUS Control Center Express(ACCE)
    ProArt Creator Hub
    CreationFirst
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    BIOS
    128 Mb
    Manageability
    WOL by PME, PXE
    Accessories
    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    2 x M.2 Rubber packages
    1 x Screw package for M.2 Key E
    1 x ProArt ruler
    1 x Q-connector
    Documentation
    1 x ACC Express Activation Key Card
    1 x User guide
    Operating System
    Windows® 11 64-bit, Windows® 10 64-bit
    Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • ProArt Z790-CREATOR WIFI

    CPU
    Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0
    and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipset
    Intel® Z790 Chipset
    Memory
    4 x DIMM, Max. 128GB, DDR5
    7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
    Graphics
    1 x HDMI® port**
    2 x Intel® Thunderbolt™ 4 ports (USB
    Type-C®) support DisplayPort*** and Thunderbolt™ video outputs****
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Support 4K@60Hz as specified in HDMI 2.1.
    *** Support 8K@60Hz as specified in DisplayPort 1.4.
    **** Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. For display connection and video output configuration regarding DP IN and Intel® Thunderbolt™ 4 ports, please refer to the user manual for more details. VGA resolution support depends on processors’ or graphic cards’ resolution.
    Expansion Slots
    Intel® 13th & 12th Gen Processors*
    2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
    Intel® Z790 Chipset**
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage
    Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    Intel® Z790 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
    8 x SATA 6Gb/s ports**
    * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
    ** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.
    Ethernet
    1 x Marvell® AQtion 10Gb Ethernet
    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard
    Wireless & Bluetooth
    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth® v5.3**
    * WiFi 6E 6GHz regulatory may vary between countries.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
    USB
    Rear USB (Total 8 ports)
    2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
    6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C® with 60W PD 3.0 / QC 4+)
    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
    Audio
    Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
    – Impedance sense for front and rear headphone outputs
    – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    – Supports up to 32-Bit/192 kHz playback*
    Audio Features
    – Premium audio capacitors
    – Dedicated audio PCB layers
    – Audio cover
    – Unique de-pop circuit
    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
    ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Back Panel I/O Ports
    2 x Thunderbolt™ 4 USB Type-C® port(s)
    6 x USB 3.2 Gen 2 port(s) (6 x Type-A)
    2 x DisplayPort (Input only)
    1 x HDMI® port
    1 x ASUS Wi-Fi Module
    1 x Marvell® AQtion 10Gb Ethernet port
    1 x Intel® 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™  button
    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin CPU OPT Fan header(s)
    1 x 4-pin AIO Pump header(s)
    5 x 4-pin Chassis Fan header(s)
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    1 x 6-pin +12V Power connector
    Storage related
    4 x M.2 slots (Key M)
    8 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2×2 (support(s) USB Type-C®)
    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 header(s)
    1 x AURA RGB header(s)
    1 x Clear CMOS header
    1 x COM Port header
    1 x CPU Over Voltage jumper
    1 x Front Panel Audio header (AAFP)
    1 x M.2 slot (Key E)
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thermal Sensor header
    Special Features
    ASUS 5X PROTECTION III
    – DIGI+ VRM (- Digital power design with DrMOS)
    – Enhanced DRAM Overcurrent Protection
    – ESD Guards
    – LANGuard
    – Overvoltage Protection
    – SafeSlot
    – Stainless-Steel Back I/O
    ASUS Q-Design
    – M.2 Q-Latch
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – BIOS FlashBack™ LED
    – Box Headers
    – ProCool II
    – Pre-mounted I/O shield
    AURA Sync
    – AURA RGB header(s)
    – Addressable Gen 2 header(s)
    Software Features
    ASUS Exclusive Software
    Armoury Crate
    – AURA Creator
    – AURA Sync
    – Fan Xpert 4 with AI Cooling II
    – Two-Way AI Noise Cancelation
    – Power Saving
    AI Suite 3
    – Easy Optimization with AI Overclocking
    – TPU
    – DIGI+ Power Control
    – Turbo app
    – PC Cleaner
    ASUS CPU-Z
    IT Management software supported
    – ASUS Control Center Express(ACCE)
    ProArt Creator Hub
    CreationFirst
    MyAsus
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    FlexKey
    MemTest86
    BIOS
    256 Mb
    Manageability
    WOL by PME, PXE
    Operating System
    Windows® 11 64-bit, Windows® 10 64-bit
    Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

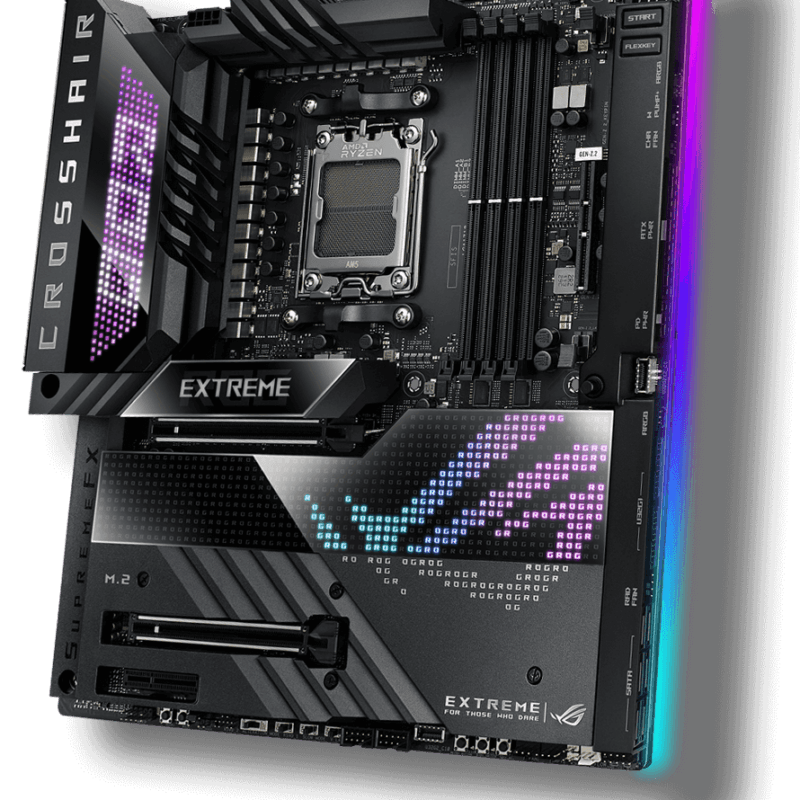

  • ROG CROSSHAIR X670E EXTREME

    CPU

    AMD Socket AM5 for AMD Ryzen™ 7000 Series
    Desktop Processors*
    * Refer to www.asus.com for CPU support
    list.

    Chipset

    AMD X670

    Memory

    4 x DIMM, Max. 128GB, DDR5
    6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC,Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD EXTended Profiles for Overclocking (EXPO™)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for
    memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

    Graphics

    2 x USB4® ports support USB Type-C® display outputs*
    * VGA resolution support depends on processors’ or graphic cards’ resolution.

    Expansion Slots

    AMD Ryzen™ 7000 Series Desktop Processors
    2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*
    AMD X670 Chipset
    1 x PCIe 4.0 x4 slot
    *When the PCIe 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
    *When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4.

    Storage

    Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
    AMD Ryzen™ 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
    GEN-Z.2_1 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
    PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
    AMD X670 Chipset
    GEN-Z.2_2 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    6 x SATA 6Gb/s ports
    *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
    ** When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4.
    *** Performance may very depending on the SSD’s firmware version, the system hardware and system configuration, for more information refer to www.asus.com for device support list.

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    1 x Marvell® AQtion 10Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth v5.3**
    * WiFi 6E 6GHz regulatory may vary between countries.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

    USB

    Rear USB (Total 12 ports)
    2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
    Front USB (Total 10 ports)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback”
    Audio Features
    – SupremeFX Shielding Technology
    – ESS® ES9218 QUAD DAC
    – LED-illuminated audio jacks
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Audio cover
    *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Back Panel I/O Ports

    2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    1 x Marvell® AQtion 10Gb Ethernet port
    5 x LED-illuminated audio jacks*
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™  button
    1 x Clear CMOS button

    *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    2 x 4-pin Radiator Fan headers
    2 x W_PUMP+ headers
    1 x WB_SENSOR header
    1 x 2-pin Water In header
    1 x 2-pin Water Out header
    1 x 3-pin Water Flow header
    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V Power connector
    1 x 6-pin PCIe Graphics Card connector
    Storage related
    2 x M.2 slots (Key M)
    1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
    6 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
    1 x Addressable Gen 2 header
    1 x Alteration Mode Switch
    1 x Aura RGB header
    1 x BIOS Switch button
    2 x BCLK button
    1 x FlexKey button
    1 x Front Panel Audio header (AAFP)
    1 x LN2 Mode jumper
    1 x Osc sence header
    12 x ProbeIt Measurement Points
    1 x ReTry button
    1 x RSVD switch
    1 x RSVD header
    1 x Safe Boot button
    1 x Slow Mode switch
    1 x Start button
    1 x V_Latch switch
    1 x 10-1 pin System Panel header
    1 x Thermal Sensor header

    Special Features

    Extreme OC Kit
    – FlexKey button
    – LN2 Mode
    – ProbeIt
    – ReTry button
    – Safe boot button
    – Start button
    – Slow Mode
    Extreme Engine Digi+
    – 10K Black Metallic Capacitors
    – MicroFine Alloy Choke
    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-Code
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsink
    – Steel backplate
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – Clear CMOS button
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    Aura Sync
    – ROG Aura Sync backplate
    – Aura RGB header
    – Addressable Gen 2 headers
    Dual BIOS
    OLED 2″
    Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
    – Support: up to 60W charging*
    – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
    – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
    * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W.

    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – ROG True Voltician
    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound
    – BullGuard or equivalent internet security (1-year full version)
    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (1 year full version)
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4 with AI Cooling II
    – Power Saving
    – Two-Way AI Noise Cancelation
    – AniMe MatrixTM LED Display
    – OLED Display
    AI Suite 3
    – TPU
    – DIGI+ Power Control
    – Turbo app
    – PC Cleaner
    MyAsus
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode

    BIOS

    2 x 256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    1 x 1-to-3 ARGB splitter cable
    1 x 1-to-2 ARGB splitter cable
    2 x 1-to-4 fan splitter cable
    1 x RGB extension cable
    3 x ROG weave SATA 6G cables pack
    1 x 3-in-1 Thermistor cables pack
    ROG Fan Controller
    1 x ROG Fan Controller
    1 x Fan EXT PWR cable
    1 x ARGB input cable
    1 x USB input cable
    1 x ROG Fan Controller 3M Mounting tape package
    1 x Fan Controller manual
    ROG GEN.2 Card with Heatsink
    1 x ROG GEN-Z.2 with heatsink
    1 x M.2 pad package for ROG GEN-Z.2
    2 x M.2 screw package for ROG GEN-Z.2
    PCIe 5.0 M.2 Card with Heatsink
    1 x PCIe 5.0 M.2 Card with heatsink
    1 x M.2 screw package for ROG PCIe 5.0 M.2 Card
    ROG True Voltician
    1 x ROG True Voltician
    4 x cables for ROG True Voltician
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Rubber Package for M.2 backplate
    1 x Q-connector
    2 x M.2 Q-Latch packages for M.2 backplate
    1 x ROG Graphics card holder
    1 x ROG key chain
    1 x ROG logo plate sticker
    1 x ROG screwdriver
    1 x ROG stickers
    1 x ROG thank you card
    Installation Media
    1 x USB drive with utilities and drivers
    Documentation
    1 x User guide

    Operating System

    Windows® 11 64-bit, Windows® 10 64-bit

    Form Factor

    EATX Form Factor
    12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

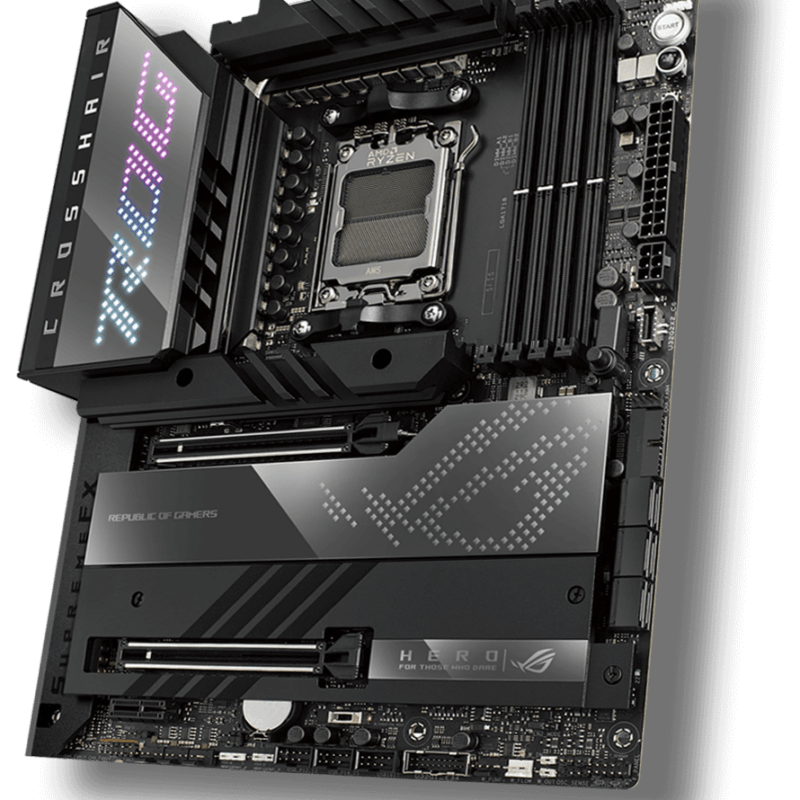

  • ROG CROSSHAIR X670E HERO

    CPU

    AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
    * Refer to www.asus.com for CPU support list.

    Chipset

    AMD X670

    Memory

    4 x DIMM, Max. 128GB, DDR5
    6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD® Extended Profiles for Overclocking (EXPO™)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

    Graphics

    1 x HDMI® port*
    2 xUSB4® ports support USB Type-C® display outputs**
    *Supports 4K@60Hz as specified in HDMI 2.1.
    **VGA resolution support depends on processors’ or graphic cards’ resolution.

    Expansion Slots

    AMD Ryzen™ 7000 Series Desktop Processors
    2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
    AMD X670 Chipset
    1 x PCIe 4.0 x1 slots
    * When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.

    Storage

    Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
    AMD Ryzen™ 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
    AMD X670 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
    6 x SATA 6Gb/s ports
    *AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
    **Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list.

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E

    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

    Supports 2.4/5/6GHz frequency band*

    Bluetooth v5.3**

    * WiFi 6E 6GHz regulatory may vary between countries, and function will be
    ready in Windows 11 or later.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

    USB

    Rear USB (Total 12 ports)
    2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
    1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
    9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
    Front USB (Total 11 ports)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
    2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
    3 x USB 2.0 headers support additional 6 USB 2.0 ports
    *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

    Audio

    ROG SupremeFX 7.1 Surround Sound High
    Definition Audio CODEC ALC4082
    – Impedance sense for front and rear
    headphone outputs
    – Supports: Jack-detection,
    Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback
    output and 113 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback”
    Audio Features
    – SupremeFX Shielding Technology
    – ESS® ES9218 QUAD DAC
    – Gold-plated audio jacks
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Audio cover

    Back Panel I/O Ports

    2 x USB4® ports with Intel® JHL8540 USB4®
    controller (2 x USB Type-C®)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet
    5 x Gold-plated audio jacks*
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™  button
    1 x Clear CMOS button
    *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    1 x W_PUMP+ header
    1 x 2-pin Water In header
    1 x 2-pin Water Out header
    1 x 3-pin Water Flow header
    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V Power connector
    1 x 6-pinPCIe Power connector
    Storage related
    4 x M.2 slots (Key M)
    6 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    3 x USB 2.0 headers support additional 6USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Alteration Mode Switch
    1 x Aura RGB header
    1 x FlexKey button
    1 x Front Panel Audio header (AAFP)
    1 x ReTry button
    1 x Start button
    1 x 10-1 pin System Panel header
    1 x Thermal Sensor header

    Special Features

    Extreme OC Kit
    – FlexKey button
    – ReTry button
    – Start button
    Extreme Engine Digi+
    – 10K Black Metallic Capacitors
    – MicroFine Alloy Choke
    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-Code
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsink
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – Clear CMOS button
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    Aura Sync
    – Aura RGB header
    – Addressable Gen 2 headers
    Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
    – Support: up to 60W charging*
    – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
    – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
    * To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W

    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound
    – BullGuard or equivalent internet security (1-year full version)
    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (1 year full version)
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4 with AI Cooling II
    – Power Saving
    – Polymo Lighting
    – Two-Way AI Noise Cancellation
    AI Suite 3
    TPU
    DIGI+ Power Control
    Turbo app
    PC Cleaner
    MyAsus
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode

    BIOS

    256Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    1 x ARGB RGB extension cable
    1 x RGB extension cable
    4 x SATA 6Gb/s cables
    PCIe 5.0 M.2 Card with Heatsink
    1 x PCIe 5.0 M.2 Card with heatsink
    1 x M.2 screw package for PCIe 5.0 M.2 Card
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    3 x Rubber Packages for M.2 backplate
    1 x Q-connector
    1 x M.2 Q-Latch package
    3 x M.2 Q-Latch packages for M.2 backplate
    1 x ROG Graphics card holder
    1 x ROG key chain
    1 x ROG stickers
    1 x ROG thank you card
    Installation Media
    1 x USB drive with utilities and drivers
    Documentation
    1 x User guide

    Operating System

    Windows® 11 64-bit, Windows® 10 64-bit

    Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • ROG MAXIMUS Z690 EXTREME

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Z690

    Memory

    4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*

    Dual Channel Memory Architecture

    Supports Intel® Extreme Memory Profile (XMP)

    OptiMem III

    *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

    Graphics

     2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs

    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    ***Support 4K@60Hz as specified in HDMI® 2.1.

    Expansion Slots

    Intel® 13th & 12th Gen Processors*

    2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

    Intel® Z690 Chipset***

    1 x PCIe 3.0 x1 slot

    * Please check PCIe bifurcation table in support site.

    ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.

    *** Support Intel® Optane Memory H Series on PCH-attached PCIe slot.

    Multi-GPU Support

    NVIDIA 2-Way SLI® Technology*
    *Support varies with different graphics cards

    Storage

    Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

    Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*

    Intel® 13th & 12th Gen Processors

    M.2_1 slot (Key M), type 2242/2260/2280/22110***

    – Intel® 13th & 12th Gen processors support PCIe 5.0 x4 mode.

    M.2_2 slot (Key M), type 2280

    – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.

    Intel® Z690 Chipset**

    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)

    DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    6 x SATA 6Gb/s ports****

    * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

    ***M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.

    ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    1 x Marvell® 10Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Intel® Wi-Fi 6E

    USB

    Rear USB:Total 10 ports

    1 x Thunderbolt™ 4 port (1 x USB Type-C®)

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

    Front USB:Total 10 ports

    1 x Thunderbolt™ 4 connector (1 x USB Type-C®)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

    – Impedance sense for front and rear headphone outputs

    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

    – Supports up to 32-Bit/384 kHz playback on front panel

    Audio Features

    – SupremeFX Shielding Technology

    – ESS® SABRE9018Q2C DAC/AMP

    – LED-illuminated audio jacks

    – Rear optical S/PDIF out port

    – Premium audio capacitors

    – Audio cover
    *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Back Panel I/O Ports

    1 x Thunderbolt™ 4 USB Type-C® port

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

    8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)

    1 x HDMI® port

    1 x ASUS Wi-Fi Module

    1 x Intel® 2.5Gb Ethernet port

    1 x Marvell® AQtion 10Gb Ethernet port

    5 x LED-illuminated audio jacks

    1 x Optical S/PDIF out port

    1 x BIOS FlashBack™ button

    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    2 x 4-pin Chassis Fan headers

    2 x 4-pin Radiator Fan headers

    2 x W_PUMP+ headers

    1 x WB_SENSOR header

    1 x 2-pin Water In header

    1 x 2-pin Water Out header

    1 x 3-pin Water Flow header

    Power related

    1 x 24-pin Main Power connector

    2 x 8-pin +12V Power connector

    1 x 6-pin PCIe Graphics Card connector

    Storage related

    3 x M.2 slots (Key M)

    1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

    6 x SATA 6Gb/s ports

    USB

    1 x Intel® Thunderbolt™ 4 port (USB Type-C®)

    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous

    1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers

    1 x Addressable Gen 2 header

    1 x AURA RGB header

    1 x BIOS Switch button

    2 x BCLK button

    1 x FlexKey button

    1 x Front Panel Audio header (AAFP)

    1 x LN2 Mode jumper

    1 x Osc sence header

    12 x ProbeIt Measurement Points

    1 x ReTry button

    1 x RSVD switch

    1 x RSVD header

    1 x Safe Boot button

    1 x Slow Mode switch

    1 x Start button

    1 x V_Latch switch

    1 x 10-1 pin System Panel header

    1 x Thermal Sensor header

    Special Features

    Extreme OC Kit

    – FlexKey button

    – LN2 Mode

    – Probelt

    – ReTry button

    – Safe boot button

    – Start button

    – Slow Mode

    Extreme Engine Digi+

    – 10K Black Metallic Capacitors

    – MicroFine Alloy Choke

    ASUS Q-Design

    – M.2 Q-Latch

    – PCIe Slot Q-Release

    – Q-Code

    – Q-Connector

    – Q-DIMM

    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    – Q-Slot

    ASUS Thermal Solution

    – M.2 heatsink backplate

    – M.2 heatsink

    – Steel backplate

    – VRM heatsink design

    ASUS EZ DIY

    – BIOS FlashBack™ button

    – Clear CMOS button

    – CPU Socket lever protector

    – ProCool II

    – Pre-mounted I/O shield

    – SafeSlot

    – SafeDIMM

    AURA Sync

    – ROG AURA sync backplate

    – AURA RGB header(s)

    – Addressable Gen 2 header(s)

    Dual BIOS

    OLED 2″

    Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support

    – Support: up to 60W charging*

    – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

    – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

    * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

    ASUS HYDRANODE

    – 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)

    * Visit ASUS Website for the latest compatibility list.

    Software Features

    ROG Exclusive Software

    – GameFirst VI

    – ROG CPU-Z

    – ROG True Voltician

    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

    – Sonic Radar III

    – DTS® Sound Unbound

    – BullGuard Internet Security (1-year full version)

    ASUS Exclusive Software

    Armoury Crate

    – AIDA64 Extreme (1 year full version)

    – AURA Creator

    – AURA Sync

    – Fan Xpert 4

    – Two-Way AI Noise Cancelation

    – OLED Display

    – AniMe MatrixTM LED Display

    AI Suite 3

    – Easy Optimization with AI Overclocking

    TPU

    EPU

    DIGI+ Power Control

    Turbo app

    MyAsus

    WinRAR

    UEFI BIOS

    AI Overclocking Guide

    ASUS EZ DIY

    – ASUS CrashFree BIOS 3

    – ASUS EZ Flash 3

    – ASUS UEFI BIOS EZ Mode

    MemTest86

    BIOS

    2 x 256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables

    1 x 1-to-3 ARGB splitter cable

    1 x 1-to-2 ARGB splitter cable

    2 x 1-to-4 fan splitter cables

    1 x RGB extension cable

    3 x ROG weave SATA 6G cables

    4 x SATA 6Gb/s cables

    1 x 3-in-1 Thermistor cables pack

    ROG Fan Controller

    1 x ROG Fan Controller

    1 x Fan EXT PWR cable

    1 x ARGB input cable

    1 x USB input cable

    1 x ROG Fan Controller 3M Mounting tape

    1 x Fan Controller manual

    ROG DIMM.2 with Heatsink

    1 x ROG DIMM.2 with heatsink

    1 x M.2 pad for ROG DIMM.2

    2 x M.2 screw package for ROG DIMM.2

    ROG True Voltician

    1 x ROG True Voltician

    4 x cables for ROG True Voltician

    Miscellaneous

    1 x ASUS Wi-Fi moving antennas

    1 x M.2 SSD screw package

    1 x Q-connector

    1 x ROG CLAVIS DAC

    1 x ROG graphics card holder

    1 x ROG key chain

    1 x ROG logo plate stickers

    1 x ROG screwdriver

    1 x ROG stickers

    1 x ROG thank you card

    1 x Thermal pad package for M.2 heatsink

    Installation Media

    1 x USB drive with utilities and drivers

    Documentation

    1 x User guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    Extended ATX
    30.5cm x 27.7cm

  • ROG MAXIMUS Z690 HERO

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Z690

    Memory

    4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory*

    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)

    *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)

    Graphics

    1 x HDMI® port**
    2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Support 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    Intel® 13th & 12th Gen Processors*

    2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
    Intel® Z690 Chipset***
    1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes)
    * Please check PCIe bifurcation table in Chapter 1.

    ** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
    *** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.

    Storage

    Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports

    Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.)
    – Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
    Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***
    – Intel® 13th & 12th Gen processors support PCIe 5.0 x4 mode
    Intel® Z690 Chipset**
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***
    Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****
    6 x SATA 6Gb/s ports*****
    * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
    *** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
    **** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4), Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode.
    ***** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports

    Ethernet

    1 x Intel® 2.5Gb Ethernet

    ASUS LANGuard

    Wireless & Bluetooth

    Intel® Wi-Fi 6E

    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

    Supports 2.4/5/6GHz frequency band*

    Bluetooth v5.2 hardware ready**

    * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

    USB

    Rear USB:Total 11 ports

    2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
    7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
    2 x USB 2.0 ports (2 x Type-A)

    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

    – Impedance sense for front and rear headphone outputs

    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

    – Supports up to 32-Bit/384 kHz playback

    Audio Features:
    – SupremeFX Shielding Technology

    – ESS® SABRE9018Q2C DAC/AMP
    – Gold-plated audio jacks
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Audio cover
    *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Back Panel I/O Ports

    2 x Thunderbolt™ 4 USB Type-C® ports

    7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)

    2 x USB 2.0 ports (2 x Type-A)

    1 x HDMI® port

    1 x Wi-Fi Module

    1 x Intel® 2.5Gb Ethernet port

    5 x Gold-plated audio jacks

    1 x Optical S/PDIF out port

    1 x BIOS FlashBack™ button

    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    4 x 4-pin Chassis Fan headers

    1 x W_PUMP+ header

    1 x 2-pin Water In header

    1 x 2-pin Water Out header

    1 x 3-pin Water Flow header

    Power related

    1 x 24-pin Main Power connector

    2 x 8-pin +12V Power connector

    1 x 6-pin PCIe Graphics Card connector

    Storage related

    3 x M.2 slots (Key M)

    6 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)

    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x AURA RGB header

    1 x FlexKey button

    1 x Front Panel Audio header (AAFP)

    1 x SPI TPM header (14-1pin)

    1 x Start button

    1 x ReTry button

    1 x 10-1 pin System Panel header

    1 x Thermal Sensor header

    Special Features

    Extreme OC Kit

    – FlexKey button

    – ReTry button

    – Start button

    Extreme Engine Digi+

    – 10K Black Metallic Capacitors

    – MicroFine Alloy Choke

    ASUS Q-Design

    – M.2 Q-Latch

    – PCIe Slot Q-Release

    – Q-Code

    – Q-Connector

    – Q-DIMM

    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    – Q-Slot

    ASUS Thermal Solution

    – M.2 heatsink backplate

    – M.2 heatsinks

    – VRM heatsink design

    ASUS EZ DIY

    – BIOS FlashBack™ button

    – Clear CMOS button

    – CPU Socket lever protector

    – ProCool II

    – Pre-mounted I/O shield

    – SafeSlot

    – SafeDIMM

    AURA Sync

    – AURA RGB header(s)

    – Addressable Gen 2 header(s)

    Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support

    – Support: up to 60W charging*

    – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

    – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

    * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

    ASUS HYDRANODE

    – 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)

    * Visit ASUS Website for the latest compatibility list.

    Software Features

    ROG Exclusive Software

    – ROG CPU-Z

    – GameFirst VI

    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

    – Sonic Radar III

    – DTS® Sound Unbound

    – BullGuard Internet Security (1-year full version)

    ASUS Exclusive Software

    Armoury Crate

    – AIDA64 Extreme (1 year full version)

    – AURA Creator

    – AURA Sync

    – Fan Xpert 4

    – Two-Way AI Noise Cancelation

    AI Suite 3

    – Easy Optimization with AI Overclocking

    TPU

    EPU

    DIGI+ Power Control

    Turbo app

    MyAsus

    WinRAR

    UEFI BIOS

    AI Overclocking Guide

    ASUS EZ DIY

    – ASUS CrashFree BIOS 3

    – ASUS EZ Flash 3

    – ASUS UEFI BIOS EZ Mode

    MemTest86

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables

    1 x ARGB RGB extension cable

    1 x RGB extension cable

    4 x SATA 6Gb/s cables

    ROG Hyper M.2 Card

    1 x ROG Hyper M.2 Card with heatsink

    2 x M.2 screw packages for ROG Hyper M.2 Card

    Miscellaneous

    1 x ASUS Wi-Fi moving antennas

    1 x M.2 Q-Latch package

    2 x M.2 Q-Latch packages for M.2 backplate

    1 x M.2 Rubber Package

    1 x Q-connector

    1 x ROG Graphics card holder

    1 x ROG stickers

    1 x ROG key chain

    1 x ROG thank you card

    Installation Media

    1 x USB drive with utilities and drivers

    Documentation

    1 x User Guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    ATX 30.5cm x 24.4cm

  • ROG MAXIMUS Z790 APEX

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® Z790 Chipset

    Memory

    2 x DIMM, Max. 64GB, DDR5 8000+(OC)/7800(OC)/7600 (OC)/7467(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem III
    * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

    Expansion Slots

    Intel® 13th & 12th Gen Processors*
    2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

    Intel® Z790 Chipset
    1 x PCIe 4.0×4 slot
    1 x PCIe 4.0×1 slot
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    ** When the PCIE 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Storage

    Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110

    Intel® Z790 Chipset**
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    6 x SATA 6Gb/s ports**
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
    ** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth® v5.3**
    * WiFi 6E 6GHz regulatory may vary between countries.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

    USB

    Rear USB (Total 10 ports)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    5 x USB 3.2 Gen 2 ports (5 x Type-A)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)

    Front USB (Total 9 ports)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback

    Audio Features
    – SupremeFX Shielding Technology
    – Savitech SV3H712 AMP
    – Gold-plated audio jacks
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Audio cover

    Back Panel I/O Ports

    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    5 x USB 3.2 Gen 2 ports (5 x Type-A)
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    5 x Gold-plated audio jacks*
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™  button
    1 x Clear CMOS button
    1 x PS/2 Keyboard (purple) port
    1 x PS/2 Mouse (green) port
    *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    2 x 4-pin Full Speed Fan headers
    1 x W_PUMP+ header
    1 x 2-pin Water In header
    1 x 2-pin Water Out header
    1 x 3-pin Water Flow header

    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V Power connector
    1 x 6-pin PCIe Power connector

    Storage related
    2 x M.2 slots (Key M)
    1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
    6 x SATA 6Gb/s ports

    USB
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Miscellaneous
    1 x 80 Light Bar jumper
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    2 x BCLK button
    1 x BIOS Switch button
    1 x FlexKey button
    1 x Front Panel Audio header (AAFP)
    1 x LN2 Mode jumper
    1 x Osc sense header
    1 x Pause switch
    12 x ProbeIt Measurement Points
    1 x ReTry button
    2 x RSVD switches
    1 x RSVD header
    1 x Safe Boot button
    1 x Slow Mode switch
    1 x Start button
    1 x V_Latch switch
    1 x 10-1 pin System Panel header
    1 x Thunderbolt™ (USB4®) header
    1 x Thermal Sensor header

    Special Features

    Extreme OC Kit
    – FlexKey button
    – LN2 Mode
    – ProbeIt
    – ReTry button
    – Safe boot button
    – Start button
    – Slow Mode

    Extreme Engine Digi+
    -SMD Capacitor
    – MicroFine Alloy Choke

    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-Code
    – Q-Connector
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot

    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsink
    – VRM heatsink design

    ASUS EZ DIY
    – BIOS FlashBack™ button
    – Clear CMOS button
    – CPU Socket lever protector
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM

    Aura Sync
    – Aura RGB header(s)
    – Addressable Gen 2 header(s)

    Dual BIOS

    Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
    – Support: up to 60W charging*
    – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
    – Compatible with PD3.0 and PPS
    * To support 60W, please install the power cable to the 6-pin PCIe power connector or else only 27W will be supported.

    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound
    – BullGuard or equivalent internet security (1-year full version)

    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (1 year full version)
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4 (with AI Cooling II)
    – Power Saving
    – Two-Way AI Noise Cancellation
    AI Suite 3
    – Easy Optimization with AI Overclocking
    – TPU
    – DIGI+ Power Control
    – Turbo app
    – PC Cleaner
    MyAsus
    WinRAR

    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    MemTest86

    BIOS

    2 x 256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    ROG DIMM.2 with Heatsink
    1 x ROG DIMM.2 with heatsink
    1 x M.2 pad for ROG DIMM.2
    2 x M.2 screw package for ROG DIMM.2

    PCIe 5.0 M.2 Card with Heatsink
    1 x PCIe 5.0 M.2 Card with heatsink
    1 x M.2 screw package for ROG PCIe 5.0 M.2 Card

    Additional Cooling Kit
    1 x Thermal pad for M.2
    1 x DDR5 Fan holder
    1 x DDR5 Fan
    1 x DDR5 Fan screw

    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Q-connector
    1 x ROG overclocking medal
    1 x ROG thank you card
    2 x M.2 Q-Latch packages for M.2 backplate
    2 x M.2 backplate Rubber Packages

    Installation Media
    1 x USB drive with utilities and drivers

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

  • ROG MAXIMUS Z790 EXTREME

    CPU

    Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    Intel® Z790 Chipset

    Memory

    4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem III
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

    Graphics

    1 x HDMI® port*
    2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs**
    *Supports 4K@60Hz as specified in HDMI 2.1.
    ** VGA resolution support depends on processors’ or graphic cards’ resolution.

    Expansion Slots

    Intel® 13th & 12th Gen Processors*
    2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
    Intel® Z790 Chipset**
    1 x PCIe 4.0×4 slot
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
    – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Storage

    Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 5.0 x4 mode)**
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    Intel® Z790 Chipset
    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
    DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    6 x SATA 6Gb/s ports***
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
    ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
    *** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

    Ethernet

    1 x Intel® 2.5Gb Ethernet
    1 x Marvell® AQtion 10Gb Ethernet
    ASUS LANGuard

    Wireless & Bluetooth

    Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    Supports Intel® Double Connect Technology
    Bluetooth® v5.3**
    * WiFi 6E 6GHz regulatory may vary between countries.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

    USB

    Rear USB (Total 10 ports)
    1 x Thunderbolt™ 4 ports (1 x USB Type-C®)
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
    Front USB (Total 10 ports)
    1 x Thunderbolt™ 4 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)
    2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
    – Impedance sense for front and rear headphone outputs
    – Supports: Jack-detection, Multi-streaming, front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    – Supports up to 32-Bit/384 kHz playback on front panel
    Audio Features
    – SupremeFX Shielding Technology
    – ESS® ES9218 QUAD DAC
    – LED-illuminated audio jacks
    – Rear optical S/PDIF out port
    – Premium audio capacitors
    – Audio cover
    *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

    Back Panel I/O Ports

    1 x Thunderbolt™ 4 USB Type-C® port
    1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
    8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    1 x Marvell® AQtion 10Gb Ethernet port
    5 x LED-illuminated audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™  button
    1 x Clear CMOS button

    Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    2 x 4-pin Radiator Fan headers
    2 x W_PUMP+ headers
    1 x WB_SENSOR header
    1 x 2-pin Water In header
    1 x 2-pin Water Out header
    1 x 3-pin Water Flow header
    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V Power connector
    1 x 6-pin PCIe Power connector
    Storage related
    3 x M.2 slots (Key M)
    1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
    6 x SATA 6Gb/s ports
    USB
    1 x Thunderbolt™ 4 USB Type-C® port
    1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
    1 x Addressable Gen 2 header
    1 x Aura RGB header
    2 x BCLK button
    1 x BIOS Switch button
    1 x FlexKey button
    1 x Front Panel Audio header (AAFP)
    1 x LN2 Mode jumper
    1 x Osc sense header
    12 x ProbeIt Measurement Points
    1 x ReTry button
    1 x RSVD switch
    1 x RSVD header
    1 x Safe Boot button
    1 x Slow Mode switch
    1 x Start button
    1 x V_Latch switch
    1 x 10-1 pin System Panel header
    1 x Thermal Sensor header

    Special Features

    Extreme OC Kit
    – FlexKey button
    – LN2 Mode
    – ProbeIt
    – ReTry button
    – Safe boot button
    – Start button
    – Slow Mode
    Extreme Engine Digi+
    – 10K Black Metallic Capacitors
    – MicroFine Alloy Choke
    ASUS Q-Design
    – M.2 Q-Latch
    – PCIe Slot Q-Release
    – Q-Code
    – Q-Connector
    – Q-DIMM
    – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    – Q-Slot
    ASUS Thermal Solution
    – M.2 heatsink backplate
    – M.2 heatsink
    – Metal backplate
    – VRM heatsink design
    ASUS EZ DIY
    – BIOS FlashBack™ button
    – Clear CMOS button
    – CPU Socket lever protector
    – ProCool II
    – Pre-mounted I/O shield
    – SafeSlot
    – SafeDIMM
    Aura Sync
    – ROG Aura Sync backplate
    – Aura RGB header
    – Addressable Gen 2 headers
    Dual BIOS
    2″ LiveDash Color OLED
    Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
    – Support: up to 60W charging*
    – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
    – Compatible with PD3.0 and PPS
    * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W will be supported.

    Software Features

    ROG Exclusive Software
    – GameFirst VI
    – ROG CPU-Z
    – ROG True Voltician
    – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    – Sonic Radar III
    – DTS® Sound Unbound
    – BullGuard or equivalent internet security (1-year full version)
    ASUS Exclusive Software
    Armoury Crate
    – AIDA64 Extreme (1 year full version)
    – Aura Creator
    – Aura Sync
    – Fan Xpert 4 (with AI Cooling II)
    – Power Saving
    – AniMe Matrix™
    – Two-Way AI Noise Cancellation
    – OLED Display
    AI Suite 3
    – Easy Optimization with AI Overclocking
    – TPU
    – DIGI+ Power Control
    – Turbo app
    – PC Cleaner
    MyAsus
    WinRAR
    UEFI BIOS
    AI Overclocking Guide
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    MemTest86

    BIOS

    2 x 256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    WOL by PME, PXE

    Accessories

    Cables
    1 x 1-to-3 ARGB splitter cable
    1 x 1-to-2 ARGB splitter cable
    2 x 1-to-4 fan splitter cable
    3 x ROG weave SATA 6G cables
    1 x 3-in-1 Thermistor cables pack
    ROG Fan Controller
    1 x ROG Fan Controller
    1 x Fan EXT PWR cable
    1 x ARGB input cable
    1 x USB input cable
    1 x ROG Fan Controller velcro tape
    1 x Fan Controller manual
    ROG DIMM.2 with Heatsink
    1 x ROG DIMM.2 with heatsink
    1 x M.2 pad for ROG DIMM.2
    2 x M.2 screw package for ROG DIMM.2
    ROG True Voltician
    1 x ROG True Voltician
    4 x cables for ROG True Voltician
    Additional Cooling Kit
    1 x Thermal pad for M.2
    1 x DDR5 Fan holder
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Q-connector
    1 x ROG key chain
    1 x ROG logo plate sticker
    1 x ROG multi-bit screwdriver
    1 x ROG stickers
    1 x ROG VIP card
    1 x Screw package for M.2 SSD
    Installation Media
    1 x USB drive with utilities and drivers
    Documentation
    1 x User guide

    Operating System

    Windows® 11, Windows® 10 64-bit

    Form Factor

    E-ATX Form Factor
    12 inch x 10.9 inch (30.5 cm x 27.7 cm)
